Mastering Multi‑Radius Arc Machining on a CNC Lathe: G02 & G03 Program Example
Submit by: Brian
Summary
CNC lathe program example code to machine multiple arc radius on a component.

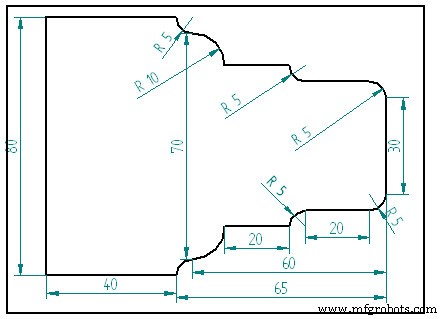

Drawing/Image
CNC Program
N05 G94 M06 T0101 N10 G00 X0 Z0 M04 S600 N15 G01 X30 F30 N20 G03 X40 Z-5 R5 N25 G01 Z-25 N30 G02 X50 Z-30 R5 N35 G01 Z-50 N40 G03 X70 Z-60 R10 N45 G02 X80 Z-65 R5 N50 G01 Z-105 N55 G00 X90 N60 G00 Z10 N65 M05 N70 M30
