CNC Lathe Taper Turning Program: Easy Step-by-Step Example

Submit by: Brian

Summary

Very basic and simple cnc program to cut taper on a cnc lathe machine.

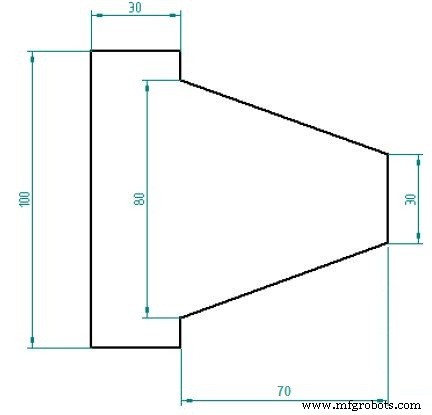

Drawing/Image

CNC Lathe Taper Turning Program: Easy Step-by-Step Example

CNC Program

N05 G94 M06 T0101
N10 G00 X0 Z0 M04 S600
N15 G01 X30 F30
N20 G01 X80 Z-70
N25 G01 X100
N30 G01 Z-30
N35 G00 X120
N40 G00 Z10
N55 M05
N60 M30
