CNC Lathe Inside Turning & Boring: Practical Program Example

Submit by: cnc programmer

Summary

CNC programming example which shows how a simple program to bore a already drilled component on a cnc lathe machine.

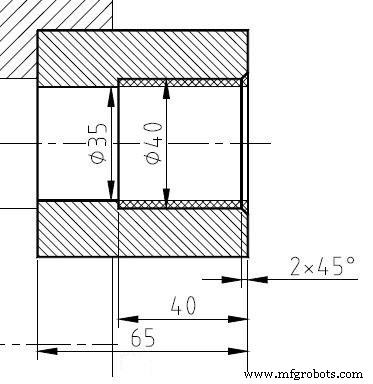

Drawing/Image

CNC Lathe Inside Turning & Boring: Practical Program Example

CNC Program

O0003;
N10 G10 P0 Z-85;
N20 T606;
N30 G50 S2000;
N40 G96 G99 S180 F.2 M4 M8 M200;
N50 G0 X44 Z2;
N60 G1 Z0;
N70 X40 Z-2 F.15;
N80 Z-40 F.2;
N90 X35;
N100 G0 Z5;
N110 X200 Z100;
N120 M30;
