CNC School Tutorial: Basic CNC Turning Program Example
Submit by: Jack
Summary
A very simple cnc program from my cnc class examples.

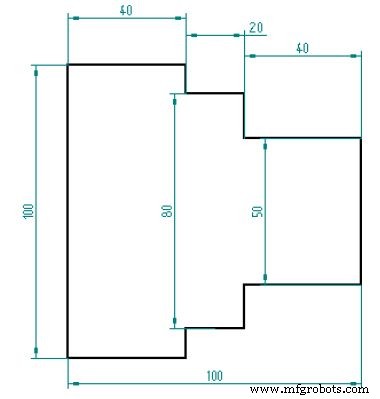

Drawing/Image
CNC Program
N05 G94 M06 T0101 N10 G00 X0 Z0 M04 S600 N15 G01 X50 F30 N20 G01 Z-40 N25 G01 X80 N30 G01 Z-60 N35 G01 X100 N40 G01 Z-100 N45 G00 X120 N50 G00 Z10 N55 M05 N60 M30
