NUM 760 CNC Lathe: Contour Turning & Grooving – Full G-Code Example

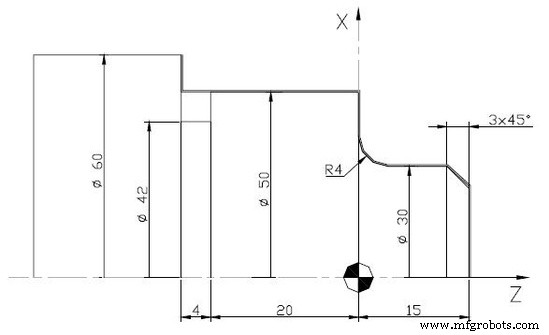

Complete program example for NUM CNC lathe machines, in this cnc program first outer contour is turned and then a groove is machined with a separate tool.

NUM CNC Lathe G Codes
NUM CNC Lathe MCodes

NUM 760 T Program Example

%159
N1 (AXE)
N10 G90 G71 G80 G40 G92 S3000
N20 G0 G52 X0 Z0
(FINISHING CONTOUR)
N30 T1 D1 M6 (TOOL#1)
N40 G95 F0.08
N50 G97 S800
N60 M3 M42
N70 G0 X66 Z-24
N80 G96 S80
N90 G1 G41 X50 Z-24 M8
N100 Z0
M110 X38
N120 G3 X30 Z4 R4
N130 G1 X12
N140 X24 Z15
N150 X0 M9
N160 G97 S800
N170 G0 G40 X0 Z17
N180 G0 G52 X0 Z0
(Groove)
N190 T4 D4 M6 (Tool#4)
N200 G95 F0.05
N210 G0 X66 Z-24
N220 G96 S25
N230 G1 X42 M8
N240 G97 S800
N250 G0 X64 M9
N260 G0 G52 X Z0 M5
N270 M2
