NUM CNC Mill Program: Outer Contour Cutting with Through Drilling & Counterbore

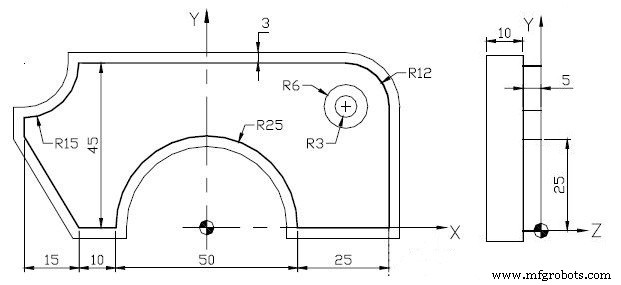

NUM CNC Mill Program Example Outer Contour Cutting with through Drilling and Counterbore to a depth of 5 mm.
NUM CNC Mill Program Example
%358 N1 (BRIDE) N10 G90 G71 G80 G40 N20 G0 G52 Z0 (Contour) N30 T4 D4 M6 N40 G97 S345 N50 G94 F110 N60 G0 X62 Y-18 N70 Z-5 M3 M41 N80 G1 G42 X50 M8 N85 G1 Y33 N90 G3 X38 Y45 R12 N100 G1 X-35 Y45 N110 G2 X-50 Y 30 R15 N120 G1 X-50 Y25 N130 G1 X-35 Y0 N140 G1 X-25 Y0 N150 G2 X25 Y0 R25 N155 G1 X50 N160 G1 G40 X68 Y-12 M9 N170 G0 G52 Z0 M5 (Drilling) N180 T6 D6 M6 N190 G97 S1061 N200 G94 F74 N210 G0 X38 Y33 N220 Z3 M3 M42 N230 G1 Z-18 M8 (5+10+3) N240 G0 Z3 M9 N250 G0 G52 Z0 M5 (Counterbore) N260 T7 D7 M6 N270 G97 S530 N280 G94 F106 N290 G0 X38 Y33 N300 Z3 M3 M40 N310 G1 Z-5 M8 N320 G0 Z3 M9 N330 G0 G52 Z0 M5 N340 M2
