Optimized G75 Cycle CNC Lathe Program for Precise Grooving and Parting
Submit by: Vikram
Summary
CNC lathe program which machines a long groove in x-axis using G75 grooving cycle then parts the same component using G75 grooving cycle.

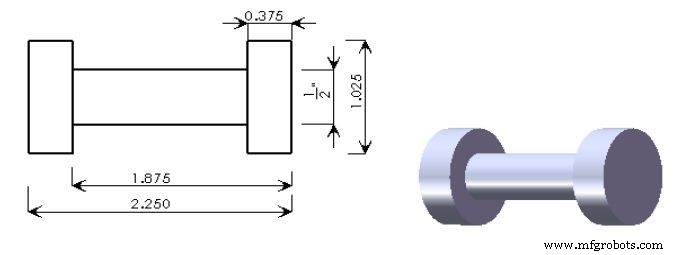

Drawing/Image
CNC Program
G90 G20 G18 G55;
T0400 M06;
S2000 M03;
G00 Z0.0;
X1.200;
G01 X1.150 F3;
G71 U0.020 R0.010;
G71 P2 Q3 ;
N2 G01 X1.025;
Z-2.420;
N3 X1.150;
G28 X0.0;
G28 Z0.0;
T0200 M06;
G57;
G00 Z-0.500;
X1.300;
G01 X 1.025 F1.5 S1000;
G75 R0.010;
G75X 0.500 Z-1.875 P 0.020 Q0.100 R-0.0001 F1.5;
G00 X1.2;
Z-2.375;
G01 X1.025;
G75 R0.010;
G75 X 0.0 P0.020 R-0.0001 ;
G28 X0.0;
G28 Z0.0;
M30;
