Complete CNC Lathe G71 Stock Removal Cycle – NCT Control Programming Example
Complete CNC program example for CNC machinists / programmers who work on CNC lathe machines with NCT cnc controls.

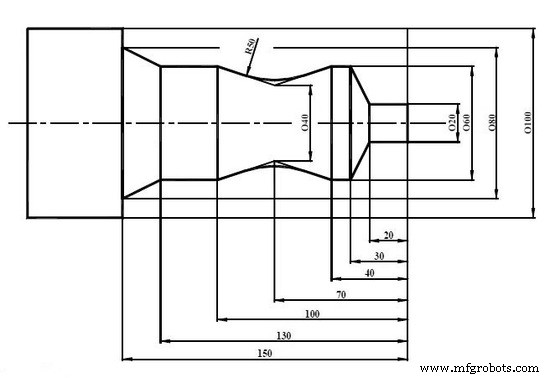

In this program example G71 Turning Cycle is used for stock removal.
NCT CNC Programming Example
%O7014(EXAMPLE 14) N100 G0 X200 Z200 N110 T101 N120 G0 X40 Z10 N125 G92 S2500 N130 G96 S100 M8 M3 N140 G0 X82 Z2 N150 G71 U1 R.5 N160 G71 U.3 W.3 F.5 P190 Q280 N170 G0 X100 Z100 N180 T202 N185 G96 S120 N190 G0 G42 X20 Z2 N200 G1 Z-20 F.2 N210 G1 X60 Z-30 N220 G1 Z-40 N230 G1 X40 Z-70 ,R50 N240 G1 X60 Z-100 N250 G1 Z-130 N260 G1 X80 Z-150 N270 G1 X101 N280 G40 X110 N290 G0 X200 Z200 N300 M30 %
