Haas G73 Irregular Path Stock Removal Cycle

G73 pattern repeating cycle is best used when you want to remove a consistent amount of material in both the X and Z axes.

Format

G73 P80 Q180 U.01 W.005 I0.3 K0.15 D4 F.012

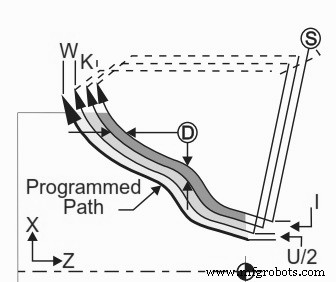

Haas G73 Irregular Path Stock Removal Cycle CNC Lathe

Parameters

D – Number of cutting passes, positive number
I – X-axis distance and direction from first cut to last, radius
K – Z-axis distance and direction from first cut to last
P – Starting Block number of path to rough
Q – Ending Block number of path to rough
U – X-axis size and direction of G73 finish allowance, diameter
W – Z-axis size and direction of G73 finish allowance
F – Feed rate to use throughout G73 PQ block
S – Spindle speed to use throughout G73 PQ block
T – Tool and offset to use throughout G73 PQ block

Haas G73 Example

O0815 (Example)
T101 (Select Tool 1)
G50 S1000
G00 X3.5 Z.1 (Move to start point)
G96 S100 M03
G73 P80 Q180 U.01 W0.005 I0.3 K0.15 D4 F.012 (Rough P to Q with T1 using G73)
N80 G42 G00 X0.6
G01 Z0 F0.1
X0.8 Z-0.1 F.005
Z-0.5
G02 X1.0 Z-0.6 I0.1
G01 X1.4
X2.0 Z-0.9
Z-1.6
X2.3
G03 X2.8 Z-1.85 K-0.25
G01 Z-2.1
N180 G40 X3.1
G00 Z0.1 M05
(******Optional Finishing Sequence*****)
G53 X0 (Zero for tool change clearance)
G53 Z0
M01
T202 (Select tool 2)
N2 G50 S1000
G00 X3.0 Z0.1 (Move to start point)
G96 S100 M03
G70 P80 Q180 (Finish P to Q with T2 using G70)
G00 Z0.5 M05
G28
M30
