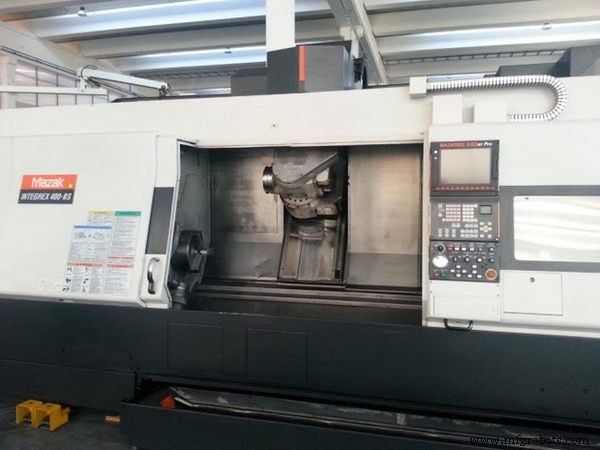

Mazak INTEGREX M-Code Reference – Comprehensive CNC Function Guide
Mazak INTEGREX M code list for cnc machinists.
Miscellaneous Function (M-Code) for the Mazak INTEGREX 300/400-III/III T/IIIS/IIIST
Mazak M Code List
| M-codes | Description |
|---|---|
| M00 | Program stop |
| M01 | Optional stop |
| M02 | Program end |
| M03 | Spindle normal rotation |
| M04 | Spindle reverse rotation |
| M05 | Spindle stop |
| M06 | Chuck unclamp (releasing workpiece) |
| M07 | Chuck clamp (holding workpiece) |
| M08 | Flood coolant ON |
| M09 | Coolant OFF |
| M10 | |
| M11 | |
| M12 | Milling spindle mode cancel (Turning mode selection) |
| M13 | Milling tool normal rotation |
| M14 | Milling tool reverse rotation |
| M15 | Milling tool stop |
| M16 | Spindle orientation 0° (for AJC) |
| M17 | Spindle orientation 120° (for AJC) |
| M18 | Spindle orientation 240° (for AJC) |
| M19 | Spindle orientation position (for the robot to insert a workpiece) |
| M20 | Robot service call |
| M21 | Robot service call |
| M22 | Robot service call |
| M23 | Robot service call |
| M24 | Robot service call |
| M25 | Robot service call |
| M26 | Robot service call |
| M27 | Robot service call |
| M28 | Robot service call |
| M29 | Robot service call |
| M30 | Reset & tape rewind |
| M31 | Tail spindle & tailstock body advance (for 300/400-III/IIIT) |
| M32 | Tail spindle & tailstock body retract (for 300/400-III/IIIT) |
| M33 | Low chuck pressure |
| M34 | High chuck pressure |
| M35 | |
| M36 | |
| M37 | |
| M38 | |
| M39 | |
| M40 | |
| M41 | |
| M42 | |
| M43 | |
| M44 | |
| M45 | Air coolant blow ON (coolant stop: M09) |
| M46 | |
| M47 | |
| M48 | Parts catcher advance |
| M49 | Parts catcher retract |
| M50 | |
| M51 | Error detect OFF |
| M52 | Error detect ON |
| M53 | Chamfering OFF |
| M54 | Chamfering ON |
| M55 | Piece count |
| M56 | Front door open |
| M57 | Front door close |
| M58 | Chuck air blast |
| M59 | |
| M60 | C-axis unclamp |
| M61 | |
| M62 | |
| M63 | |
| M64 | |
| M65 | |
| M66 | C-axis clamp |
| M67 | C-axis brake (for machining by G01) |
| M68 | Cycle bar feeder call 1 |
| M69 | Cycle bar feeder call 2 |
| M70 | |
| M71 | |
| M72 | Inside chuck clamp |
| M73 | Outside chuck clamp |
| M74 | Steady rest – milling head connection mode release |
| M75 | Steady rest – milling head connection mode start |
| M76 | |
| M77 | |
| M78 | |
| M79 | |
| M80 | |
| M81 | Workpiece measurement start |
| M82 | Workpiece measurement end |
| M83 | Tool measurement start |
| M84 | Tool measurement end |
| M85 | |
| M86 | Steady rest 1 unclamp |
| M87 | Steady rest 1 clamp |
| M88 | Steady rest 2 unclamp |
| M89 | Steady rest 2 clamp |
| M90 | |
| M91 | |
| M92 | |
| M93 | |
| M94 | |
| M95 | |
| M96 | User macro interruption, valid |
| M97 | User macro interruption, invalid |
| M98 | EIA → EIA Subprogram call |
| M99 | EIA → EIA Return to main EIA program |
| M100 | Workpiece measurement DIA start |
| M101 | Workpiece measurement DIA end |
| M102 | Workpiece measurement STP start |
| M103 | Workpiece measurement STP end |
| M104 | Workpiece measurement GRV start |
| M105 | Workpiece measurement GRV end |
| M106 | Workpiece measurement WID start |
| M107 | Workpiece measurement WID end |
| M108 | Workpiece measurement DIS start (chuck barrier release) |
| M109 | Workpiece measurement DIS end |
| M110 | Tool tip measurement TOL start |
| M111 | Tool tip measurement TOL end |
| M112 | External tool compensation EXT start |
| M113 | External tool compensation EXT end |
| M114 | Z-axis offset measurement ZOF start |
| M115 | Z-axis offset measurement ZOF end |
| M116 | C-axis offset measurement COF start |
| M117 | C-axis offset measurement COF end |
| M118 | |
| M119 | |
| M120 | Measurement data print out |
| M121 | |
| M149 | |
| M150 | Workpiece unload demand to robot |
| M151 | Milling spindle through air blow ON (Only for turning tools) |
| M152 | Milling spindle through air blow OFF (Only for turning tools) |
| M153 | Milling spindle through coolant ON |
| M154 | Milling spindle through coolant OFF |
| M155 | Chuck coolant ON (composed movement) |
| M156 | Chuck coolant OFF (composed movement) |
| M157 | Spindle through coolant blow ON (OFF: M159) |
| M158 | Spindle through air blow ON (OFF: M159) |
| M159 | M157, M158 OFF |
| M160 | Shower coolant ON/chuck stopper extend |
| M161 | Shower coolant OFF/chuck stopper retract |
| M162 | Workpiece rechucking (for a piece delivered by robot) |
| M163 | Tail spindle thrust low pressure (for 300/400-III/IIIT) |
| M164 | Tail spindle thrust high pressure (for 300/400-III/IIIT) |
| M165 | |
| M166 | |
| M167 | |
| M168 | |
| M169 | 35K, 70K high pressure coolant ON (OFF: M9, M154) |
| M170 | |
| M171 | |
| M172 | Index 0°(KOUYOU) |
| M173 | Index 90°(KOUYOU) |
| M174 | Index 180°(KOUYOU) |
| M175 | Index 270°(KOUYOU) |
| M176 | Index 270°(KOUYOU) |
| M177 | Index 270°(KOUYOU) |
| M178 | Index 270°(KOUYOU) |
| M179 | Index 270°(KOUYOU) |
| M180 | |
| M197 | |
| M198 | EIA → MAZATROL program call |
| M199 | EIA → MAZATROL program end |
| M200 | Milling point machining start |
| M201 | Milling line machining start |
| M202 | Turning mode |
| M203 | Milling tool normal rotation |
| M204 | Milling tool reverse rotation |
| M205 | Milling tool stop |
| M206 | |
| M207 | M208, M209 mode cancel |
| M208 | ATC prohibition mode during finishing, coolant ON |
| M209 | ATC prohibition mode during finishing, coolant OFF |
| M210 | C-axis clamp (for milling) |
| M211 | C-axis brake (for milling) |
| M212 | C-axis unclamp (for milling) |
| M213 | C-axis brake only (brake by M211) |
| M214 | C-axis unclamp only (unclamp by M212) |
| M215 | M213, M214 and M216 mode cancel |
| M216 | C-axis unclamp neglect mode (cancel: M215) |
| M217 | |
| M218 | |
| M219 | Milling tool orient |
| M220 | |
| M229 | |
| M230 | Grinding mode ON |
| M231 | Grinding speed setting |
| M232 | |
| M233 | |
| M234 | |
| M235 | |
| M236 | C-axis servo gain normal |
| M237 | C-axis servo gain low |
| M238 | C-axis servo gain middle |
| M239 | C-axis servo gain high |
| M240 | |
| M241 | |
| M242 | |
| M243 | |
| M244 | |
| M245 | |
| M246 | |
| M247 | |
| M248 | Spindle speed check (for interlocking the start of cutting) |
| M249 | Milling head selection preparation |
| M250 | Milling head/B-axis unclamp |
| M251 | B-axis clamp |
| M252 | Milling spindle unclamp |
| M253 | Milling spindle clamp |
| M254 | Milling head/B-axis clamp |
| M255 | |
| M256 | |
| M257 | |
| M258 | Milling head air blow |
| M259 | |
| M260 | Polygon mode ON |
| M261 | Polygon mode OFF |
| M262 | |
| M273 | |
| M274 | Steady rest coolant ON |
| M275 | Steady rest coolant OFF |
| M276 | |
| M330 | |
| M331 | Spindle coil change fixed to high speed |
| M332 | Spindle coil change, valid |
| M333 | |
| M347 | |
| M348 | Yt-axis selection |
| M349 | Y-axis selection |
| M350 | |
| M351 | M352 cancel |
| M352 | Spindle speed arrival signal check, valid |
| M353 | |
| M369 | |
| M370 | Axis load detection, invalid |
| M371 | Axis load detection, valid |
| M372 | Axis load detection, temporarily invalid |
| M373 | Axis load detection, re-start |
| M374 | NC feed holding on overload detection |
| M375 | NC feed holding & spindle stop on overload detection |
| M376 | Overload detection level % setting |
| M377 | Overload detection time setting (unit: 0.1 sec) |
| M378 | Overload detection peak %/detection frequency setting |
| M379 | Overload detection table No. registration |
| M380 | |
| M389 | |
| M390 | M391 cancel |
| M391 | Spindle mis-chucking cancel (M3/M4 completed with chuck open) |
| M392 | |
| M393 | |
| M394 | TOOL EYE extension possible during chuck close (when robot valid) |
| M395 | M394 cancel |
| M396 | |
| M600 | |
| M601 | Magazine tool rotation |
| M602 | |
| M730 | |
| M731 | Tail thrust 1 selection |
| M732 | Tail thrust 2 selection |
| M733 | Tail thrust 3 selection |
| M734 | Tail thrust 4 selection |
| M735 | Tail thrust 5 selection |
| M736 | Tail thrust 6 selection |
| M737 | Tail thrust 7 selection |
| M738 | Tail thrust 8 selection |
| M739 | Tail thrust 9 selection |
| M740 | Tail thrust 10 selection |
| M741 | Positioning tailstock to “Position 1” |
| M742 | Positioning tailstock to “Position 2” |
| M743 | Positioning tailstock to “Retract” |
| M744 | |
| M927 | |
| M928 | Y-axis zero point return |
| M929 | |
| M930 | Yt-axis moving to ATC position |
| M931 | |
| M999 |
