Master G01 Chamfering & Rounding on Mori Seiki DuraTurn – Step‑by‑Step CNC Programming Guide

Submit by: Brian

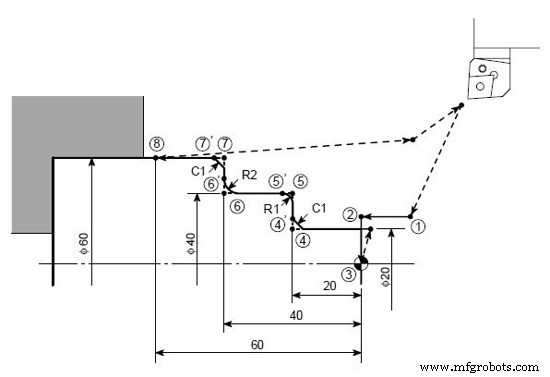

Drawing/Image

Master G01 Chamfering & Rounding on Mori Seiki DuraTurn – Step‑by‑Step CNC Programming Guide

CNC Program

O0001;
N1;
G50 S1500;
G00 T0101;
G96 S200 M03;
X30.0 Z20.0 M08;
G01 Z0 F1.0;
X0 F0.2;
G00 X20.0 Z1.0;
G01 Z−20.0, C1.0;
X40.0 , R1.0;
Z−40.0 , R2.0;
X60.0 , C1.0;
Z−60.0;
G00 U1.0 Z20.0;
X200.0 Z150.0 M09;
M01;
