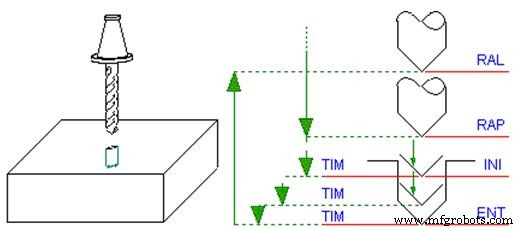

ECS G83/r Deep Drilling Cycle with Dwell for Efficient Chip Breaking
ECS G83/r Deep Drilling with Dwell for chip breaking
The differences between this cycle and the deep drilling G83 are:
- At the end of every drilling step it is executed a dwell of TIM sec to broken the chip.
- At the end of the dwell the bit isn’t moved in rapid to the RAP quote but starts immediately next drilling step.
The cycle Data Entry is activated, in MDI and Edit modes, through this keys sequence:
Programming
G83 <ENT=..> <RAP=..> <RAL=..> <INI=..> <IND=..> <TIM=..>
Parameters
| Parameter | Description |
|---|---|
| ENT | Depth quote reached at working feed |
| RAP | Quote reached in rapid at the beginning of cycle |
| RAL | Quote reached in rapid at the end of the cycle |
| INI | Initial Drilling Quote [mm] |
| IND | Drilling Increment [mm] |
| TIM | Dwell time [sec] |
