ECS G83 Deep Drilling and Clearing Cycle: Precise, Efficient Hole Drilling
ECS G83 Deep Drilling with clearing

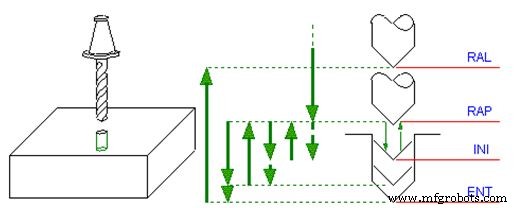

This cycle is normally used to drill deep holes. The first drill the bit will reach the quote defined with the parameter INI. After it will go back in rapid to the RAP quote. Next time the bit will advance of the entity given by (INI + IND) . After again it will go back to RAP. The operation will be repeated reducing every time the increment IND till the ENT quote will be reached.
Note: When the increment reaches a value smaller than IND it will be forced equal to IND.
The cycle Data Entry is activated, in MDI and Edit modes, through this keys sequence:
Programming
G83 <ENT=..> <RAP=..> <RAL=..> <INI=..> <IND=..>
Parameters
| Parameter | Description |
|---|---|
| ENT | Depth quote reached at working feed |
| RAP | Quote reached in rapid at the beginning of cycle |
| RAL | Quote reached in rapid at the end of the cycle |
| INI | Initial Drilling quote [mm] |
| IND | Drilling Increment [mm] |
