ECS G86 Boring Cycle with Spindle Stop Feature
ECS G86 Boring with Spindle stop Cycle

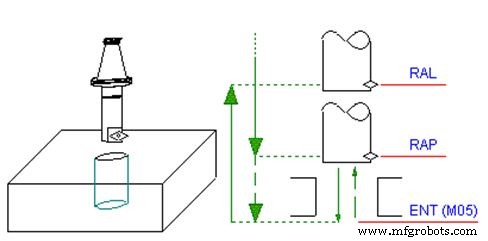

The only difference between this cycle and the Standard Drilling G81 is that the spindle, reached the ENT quote is stopped It will restart only when the tool reaches in rapid the RAL quote.
The cycle Data Entry is activated, in MDI and Edit modes, through this keys sequence:
Programming
G86 <ENT=..> <RAP=..> <RAL=..>
Parameters
| Parameter | Description |
|---|---|
| ENT | Depth quote reached at working feed |
| RAP | Quote reached in rapid at the beginning of cycle |
| RAL | Return Quote reached at rapid with spindle stopped. |
