ECS G89 Boring Cycle with Dwell Time: Step‑by‑Step Guide
ECS G89 Boring with Dwell Cycle

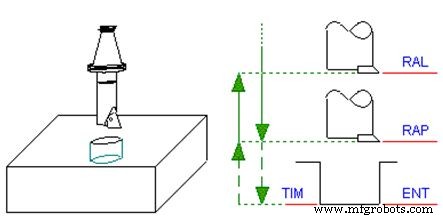

This cycle differs from the standard Boring cycle G85 allowing to program a dwell time (TIM sec) between the arrival to the ENT quote, to the start of the movement, done at working feed, to reach the RAP quote.
The cycle Data Entry is activated, in MDI and Edit modes, through this keys sequence:
Programming
G89 <ENT=..> <RAP=..> <RAL=..> <TIM=..>
Parameters
| Parameter | Description |
|---|---|
| ENT | Depth quote reached at working feed |
| RAP | Quote reached in rapid at the beginning of cycle |
| RAL | Return Quote reached at rapid |
| TIM | Dwell [sec] to start working movement between ENT and RAP. |
