Heidenhain Conversational Programming: Practical Sub-Program Exercise Guide
Submit by: cnc programmer

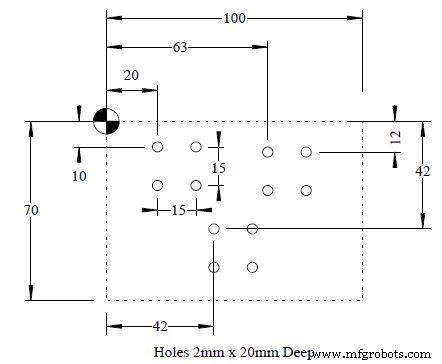

Drawing/Image
CNC Program
0 BEGIN PGM 10129 MM 1 BLK FORM 0.1 Z X+0 Y-70 Z-20 2 BLK FORM 0.2 X+100 Y+0 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 CYCL DEF 1.0 PECKING 7 CYCL DEF 1.1 SET UP 2 8 CYCL DEF 1.2 DEPTH -21 9 CYCL DEF 1.3 PECKG -5 10 CYCL DEF 1.4 DWELL 0 11 CYCL DEF 1.5 F100 12 L X+20 Y-10 R0 FMAX M13 13 L Z+2 FMAX M89 14 CALL LBL 1 15 L X+42 Y-42 FMAX M89 16 CALL LBL 1 17 L X+63 Y-10 FMAX M89 18 CALL LBL 1 19 TOOL CALL 0 20 L M6 21 L M30 22 LBL 1 23 L IX+15 FMAX 24 L IY-15 FMAX 25 L IX-15 FMAX M99 26 LBL 0 27 END PGM 10129 MM
