Expert Rotation Techniques for Heidenhain CNC Programming

Submit by: Brian

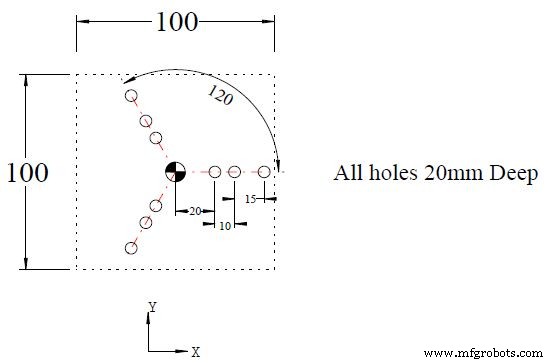

Drawing/Image

CNC Program

0 BEGIN PGM 10127 MM
1 BLK FORM 0.1 Z X-50 Y-50 Z-40
2 BLK FORM 0.2 X+50 Y+50 Z+0
3 TOOL DEF 1
4 TOOL CALL 1 Z S1000
5 L M6
6 CYCL DEF 200 DRILLING
	Q200 = 5 ;SET-UP CLEARANCE
	Q201 = -20 ;DEPTH
	Q206 = ??? ;FEED RATE FOR PLNGNG
	Q202 = 5 ;PLNGNG DEPTH
	Q210 = 0 ;DWELL TIME AT TOP
	Q203 = 0 ;SURFACE COORDINATE
	Q204 = 5 ;2ND SET-UP CLEARANCE
7 L X+20 Y+0 R0 FMAX M13
8 L Z+5 FMAX M89
9 L IX+10 FMAX
10 L IX+15 FMAX
11 CYCL DEF 10.0 ROTATION
12 CYCL DEF 10.1 ROT+120
13 L X+20 Y+0 FMAX
14 L IX+10 FMAX
15 L IX+15 FMAX
16 CYCL DEF 10.0 ROTATION
17 CYCL DEF 10.1 ROT+240
18 L X+20 Y+0 FMAX
19 L IX+10 FMAX
20 L IX+15 FMAX M99
21 CYCL DEF 10.0 ROTATION
22 CYCL DEF 10.1 ROT+0
23 TOOL CALL 0
24 L M6
25 L M30
26 END PGM 10127 MM
