Mastering Repeat Functions in Heidenhain Conversational Programming
Submit by: Machinist

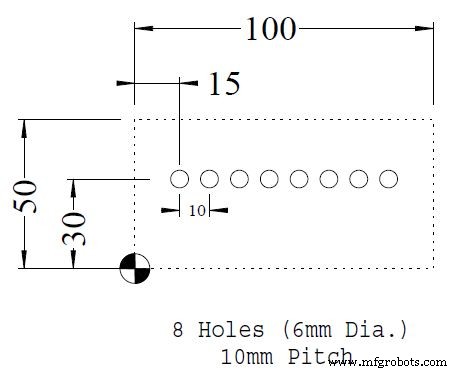

Drawing/Image
CNC Program
0 BEGIN PGM 10128 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+50 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 CYCL DEF 1.0 PECKING 7 CYCL DEF 1.1 SET UP -2 8 CYCL DEF 1.2 DEPTH -20 9 CYCL DEF 1.3 PECKG -10 10 CYCL DEF 1.4 DWELL 0 11 CYCL DEF 1.5 F500 12 L X+15 Y+30 R0 FMAX M13 13 L Z+2 FMAX M99 14 LBL 1 15 L IX+10 FMAX M99 16 CALL LBL 1 REP 6/6 17 TOOL CALL 0 18 L M6 19 L M30 20 END PGM 10128 MM
