Heidenhain Conversational Programming: Step‑by‑Step Circle Boss Example
Submit by: Vikram

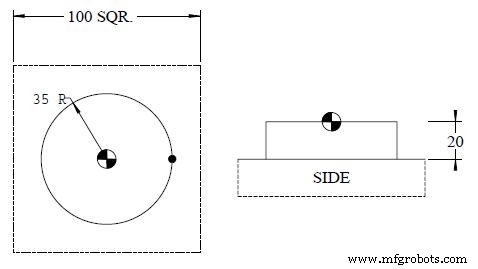

Drawing/Image
CNC Program
0 BEGIN PGM 10114 MM 1 BLK FORM 0.1 Z X-50 Y-50 Z-40 2 BLK FORM 0.2 X+50 Y+50 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X+70 Y+0 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? 9 CC X+50 Y+50 10 CP IPA+360 DR- (or CP PA+0 DR-) 11 DEP ? 12 TOOL CALL 0 13 L M6 14 L M30 14 END PGM 10114 MM
