Hexagon Heidenhain CNC Conversational Programming: Practical Example

This is a very simple lathe cnc programming example. This lathe cnc programming example is for beginners level cnc programmers or for novice cnc programmers. Just simple cnc contour programming. The G code which are used in this programming example are from Fanuc cnc control.Lathe CNC Programming Ex

Although this example drawing looks a bit complex, but it is very easy to program. Before going through this exercise you must fist read circular interpolation articlesCircular Interpolation Concepts & Programming articlesCircular Interpolation Concepts & Programming Part 1 (Concepts)Circula

Complete cnc programming example for machinists who work on a Wire EDM machine (Electrical Discharge Machining)CNC Wire Cut IntroductionWire EDM cutting, also known as electrical discharge machining, is a process that uses an electrically energized thin wire to slice through metal. Wire EDM cutting

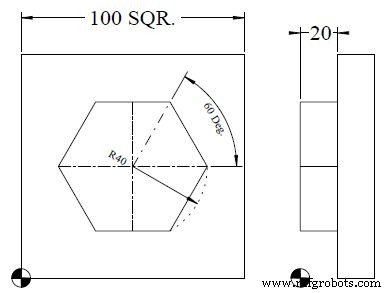

Submit by: Machinist Drawing/Image CNC Program 0 BEGIN PGM 10118 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 14 TOOL CALL 1 Z S10005 L M66 CYCL DEF 4.0 POCKET MILLING7 CYCL DEF 4.1 SET UP 58 CYCL DEF 4.2 DEPTH -209 CYCL DEF 4.3 PECKG -10 F8010 CYCL DEF 4.4 X+8011 CYCL
