Heidenhain Conversational Programming: Mirror Image CNC Exercise

Submit by: cnc programmer

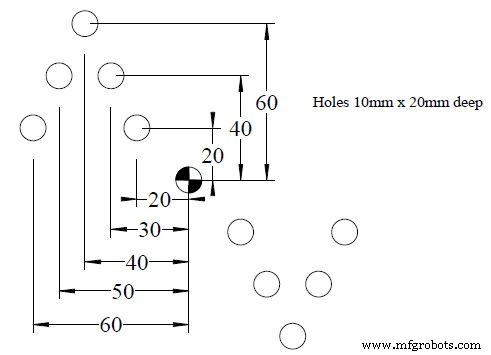

Drawing/Image

Heidenhain Conversational Programming: Mirror Image CNC Exercise

CNC Program

0 BEGIN PGM 10126 MM
1 BLK FORM 0.1 Z X-65 Y-65 Z-20
2 BLK FORM 0.2 X+65 Y+65 Z+0
3 TOOL DEF 1
4 TOOL CALL 1 Z S1000
5 L M6
6 CYCL DEF 200 DRILLING
	Q200 = 5 ;SET-UP CLEARANCE
	Q201 = -20 ;DEPTH
	Q206 = ??? ;FEED RATE FOR PLNGNG
	Q202 = 5 ;PLNGNG DEPTH
	Q210 = 0 ;DWELL TIME AT TOP
	Q203 = 0 ;SURFACE COORDINATE
	Q204 = 5 ;2ND SET-UP CLEARANCE
7 L X-20 Y+20 R0 FMAX M13
8 L Z+5 FMAX M89
9 L X-30 Y+40 FMAX
10 L X-40 Y+60 FMAX
11 L X-50 Y+40 FMAX
12 L X-60 Y+20 FMAX
13 CYCL DEF 8.0 MIRROR IMAGE
14 CYCL DEF 8.1 X
15 L X-20 Y+20 FMAX
16 L X-30 Y+40 FMAX
17 L X-40 Y+60 FMAX
18 L X-50 Y+40 FMAX
19 L X-60 Y+20 FMAX M99
20 CYCL DEF 8.0 MIRROR IMAGE
21 CYCL DEF 8.1
22 TOOL CALL 0
23 L M6
24 L M30
25 END PGM 10126 MM
