Heidenhain CNC Programming: Grid Pattern Exercise with Linear Cycle 221

Submit by: cnc programmer

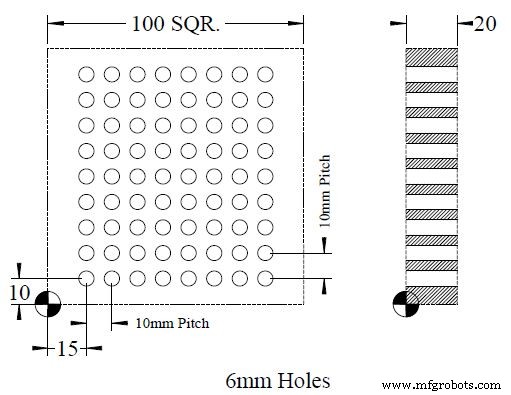

Drawing/Image

CNC Program

0 BEGIN PGM 10125 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+3
4 TOOL CALL 1 Z S500
5 L M6
6 L X+15 Y+10 R0 FMAX M13
7 CYCL DEF 1.0 PECKING
8 CYCL DEF 1.1 SET UP 2
9 CYCL DEF 1.2 DEPTH -20
10 CYCL DEF 1.3 PECKG -20
11 CYCL DEF 1.4 DWELL 0
12 CYCL DEF 1.5 F200
13 CYCL DEF 221 CARTESIAN PATTERN
	Q225 = 15 ;STARTNG PNT 1ST AXIS
	Q226 = 10 ;STARTNG PNT 2ND AXIS
	Q237 = 10 ;SPACING IN 1ST AXIS
	Q238 = 10 ;SPACING IN 2ND AXIS
	Q242 = 8 ;NUMBER OF COLUMNS
	Q243 = 9 ;NUMBER OF LINES
	Q224 = 0 ;ANGLE OF ROTATION
	Q200 = 2 ;SET-UP CLEARANCE
	Q203 = 0 ;SURFACE COORDINATE
	Q204 = 100 ;2ND SET-UP CLEARANCE
14 TOOL CALL 0
15 L M6
16 L M30
17 END PGM 10125 MM
