Heidenhain TNC Programming: Circle Boss Exercise – Master CNC Precision
Submit by: Machinist

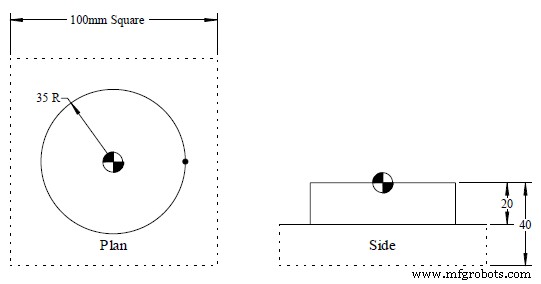

Drawing/Image
CNC Program
0 BEGIN PGM 10105 MM 1 BLK FORM 0.1 Z X-50 Y-50 Z-40 2 BLK FORM 0.2 X+50 Y+50 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X+70 Y+0 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? 9 CC X+0 Y+0 10 C X+35 Y+0 DR- 11 DEP ? 12 TOOL CALL 0 13 L M6 14 STOP M30 15 END PGM 10105 MM
