Mastering Siemens Sinumerik ANG= Angle Command for Precise Contour Control
Sinumerik ANG=

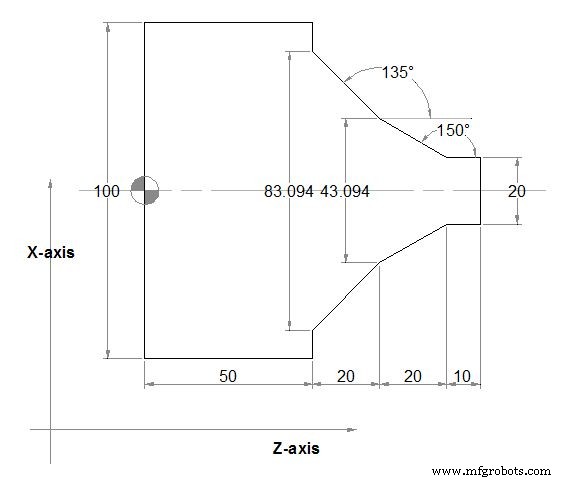

If the end points for the contour are not directly specified in the machining drawing, it is also possible to use an angle specification ANG=… to determine the straight line.
ANG= can be used in G17 G18 G19 planes.
Positive angles are aligned counterclockwise.
ANG= Example
N10 G18 G90 G96 F0.8 N20 S500 M3 N30 T1 D1 N40 G0 X140 Z160 N50 G1 X20 Z100 F0.6 N60 Z90 N70 Z70 ANG=150 N80 Z50 ANG=135 N90 Z50 X100 N100 G0 X200 Z200 N110 M30
