Master HEIDENHAIN TNC: Step‑by‑Step Chamfer Programming Tutorial
Submit by: Brian

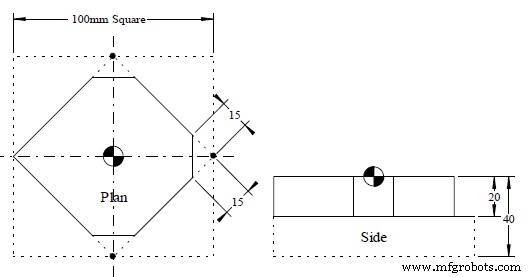

Drawing/Image
CNC Program
0 BEGIN PGM 10103 MM 1 BLK FORM 0.1 Z X-50 Y-50 Z-40 2 BLK FORM 0.2 X+50 Y+50 Z+0 3 TOOL DEF 1 L+0 R+10 4 TOOL CALL 1 Z S1000 5 L M6 6 L X-70 Y-20 R0 FMAX M13 7 L Z-20 FMAX 8 APPR ? 9 L X+0 Y+50 10 CHF 15 11 L X+50 Y+0 12 CHF 15 13 L X+0 Y-50 14 CHF 15 15 L X-50 Y+0 16 DEP ? 17 TOOL CALL 0 18 L M6 19 STOP M30 20 END PGM 10103 MM
