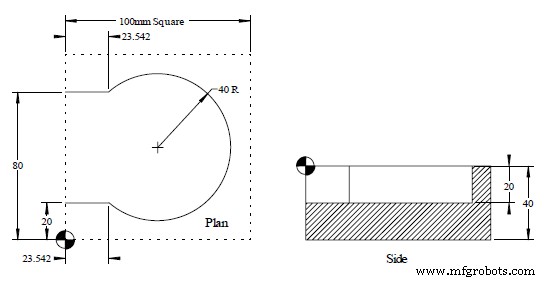

Master HEIDENHAIN TNC Programming: Circle Arc (RAD) Exercise

Submit by: cnc programmer Drawing/Image CNC Program 0 BEGIN PGM 10125 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-202 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 1 L+0 R+34 TOOL CALL 1 Z S5005 L M66 L X+15 Y+10 R0 FMAX M137 CYCL DEF 1.0 PECKING8 CYCL DEF 1.1 SET UP 29 CYCL DEF 1.2 DEPTH -2010 CYCL DEF 1.3 PECKG -20

Submit by: Brian Drawing/Image CNC Program 0 BEGIN PGM 10124 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-202 BLK FORM 0.2 X+120 Y+70 Z+03 TOOL DEF 14 TOOL DEF 25 TOOL DEF 36 TOOL CALL 1 Z S5007 L M68 L M139 CYCL DEF 1.0 PECKING10 CYCL DEF 1.1 SET UP 211 CYCL DEF 1.2 DEPTH -212 CYCL DEF 1.3 PECKG -213 CYCL DEF

Submit by: Vikram Drawing/Image CNC Program 0 BEGIN PGM 10120 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 14 TOOL DEF 25 TOOL DEF 36 CYCL DEF 14.0 CONTOUR GEOM.7 CYCL DEF 14.1 CONTOUR LABEL 1/2/3/4/ / /8 TOOL CALL 1 Z S5009 L M610 CYCL DEF 15.0 PILOT DRILL11 CYCL DEF

Submit by: Machinist Drawing/Image CNC Program 0 BEGIN PGM 10118 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 14 TOOL CALL 1 Z S10005 L M66 CYCL DEF 4.0 POCKET MILLING7 CYCL DEF 4.1 SET UP 58 CYCL DEF 4.2 DEPTH -209 CYCL DEF 4.3 PECKG -10 F8010 CYCL DEF 4.4 X+8011 CYCL
