Step-by-Step Heidenhain Conversational CNC Programming Example
Submit by: cnc programmer

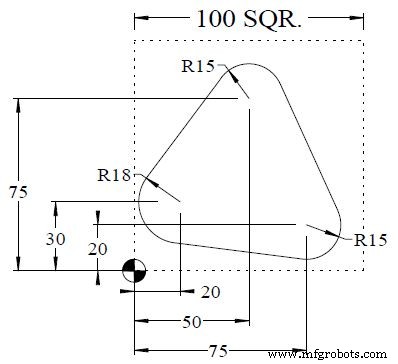

Drawing/Image
CNC Program
0 BEGIN PGM FK2 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 L+0 R+5 4 TOOL CALL 1 Z S500 5 L M6 6 L X-20 Y+30 R0 FMAX M3 7 L Z+2 FMAX 8 L Z-10 F500 9 L X+2 Y+30 RL 10 CC X+20 Y+30 11 C X+5.6 Y+40.8 DR- 12 L X+38 Y+84 13 CC X+50 Y+75 14 C X+63.656 Y+81.207 DR- 15 L X+88.656 Y+26.207 16 CC X+75 Y+20 17 C X+73.113 Y+5.119 DR- 18 L X+17.735 Y+12.143 19 CC X+20 Y+30 20 C X+2 Y+30 DR- 21 L X-20 R0 22 L Z+50 R0 FMAX M5 23 TOOL CALL 0 Z S60 24 L M6 25 L M2 26 END PGM FK2 MM
