Fanuc G90 Turning Cycle Example: 0‑TC Program for Efficient Turning

Fanuc G90 Turning Cycle

Fanuc G90 turning cycle is used for simple turning however multiple passes are possible by specifying the X-axis location of additional passes.

Called with many names like – Fanuc G90 Outer Diameter/Internal Diameter Cutting Cycle or G90 Straight cutting cycle

Programming Format

G90 X... Z...

G90 U... W...

X – Diameter to be cut.
Z – End point in z-axis.
U – x-axis incremental distance to target.
W – z-axis incremental distance to target.

G90 Tutorials

G90 Turning Cycle
G90 Taper Turning

G90 Examples

Fanuc G90 Turning Cycle Example: 0‑TC Program for Efficient Turning

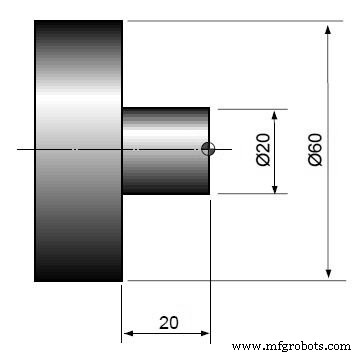

G90 Turning Cycle Example

N10 G50 S2000
G96 S180 M03
T0100
G00 X65.0 Z3.0 T0101
G90 X55.0 Z-20.0 F0.25
X50.0
X45.0
X40.0
X35.0
X30.0
X25.0
X20.5
X20.0
G00 X200.0 Z200.0 T0100
M30

Example 2

Same program with Added Facing & 60dia Turning

N10 G50 S2000
G96 S180 M03
T0100
G00 X65.0 Z0 T0101
G01 X-1.6 F0.2
G00 X60.0 Z1.0
G01 Z-40.0 F0.25
G00 U1.0 Z1.0
G90 X55.0 Z-20.0 F0.25
X50.0
X45.0
X40.0
X35.0
X30.0
X25.0
X20.5
X20.0
G00 X200.0 Z200.0 T0100
M30
