Fanuc G72.1 Rotational Copy Programming: Detailed Example & Tips
Fanuc G72.1 Rotational copy programming example, G72.1 G-code is used to repeatedly produce a figure with rotational movement.
Fanuc G72.1 Rotational Copy
Using G72.1 Rotational Copy G-code a figure specified by a subprogram can be repeatedly produced with Rotational movement.
Read more Fanuc G72.1 Rotational Copy (Figure Copy Function CNC Mill)
Fanuc G81 Drilling Cycle
G81 drilling cycle is used for simple drilling/spot drilling operations.
Read complete article with program examples Fanuc G81 Drilling Cycle

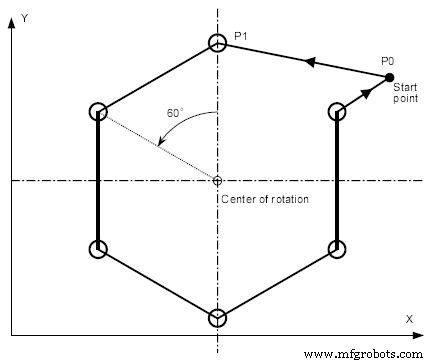

Fanuc G72.1 Program Example
Main program
O2000 ; N10 G90 G00 G17 X250. Y100. Z100. ; (P0) N20 G72.1 P2100 L6 X100. Y50. R60. ; N30 G80 G00 X250. Y100. ; (P0) N40 M30 ;
Sub program
O2100 N100 G90 G81 X100. Y150. R60. Z10. F200. ; (P1) N200 M99 ;
