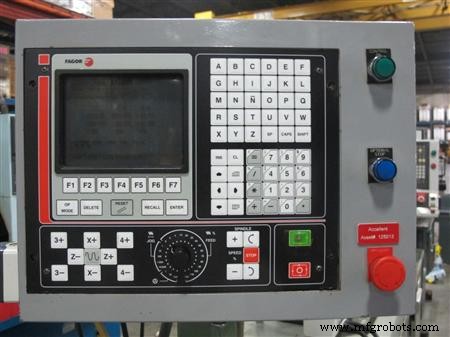

Complete G‑Codes & M‑Codes Reference for Fagor 8025/8030 Milling & Lathe Models

Fagor Mill 8025/8030 Models M MG MS GP and Fagor Lathe 8025/8030 Models T TG TS programming G codes / M codes complete lists.

Fagor 8025/8030M G Codes M Codes

Fagor 8025/8030 Models M MG MS GP programming G codes / M codes complete lists.

G Codes

G Codes	Description
G00	Positioning
G01	Linear interpolation
G02	Clockwise circular helical interpolation
G03	Counter-clockwise circular helical interpolation
G04	Dwell, duration programmed by means of K
G05	Round corner
G06	Circular Interpolation with absolute center coordinates
G07	Square corner
G08	Arc tangent to previous path
G09	Arc programmed by three points
G10	Cancellation of mirror image
G11	Mirror image on the X axis
G12	Mirror image on the Y axis
G13	Mirror image on the Z axis
G17	Selection of the XY plane
G18	Selection of the XZ plane
G19	Selection of the YZ plane
G20	Call for standard subroutine
G21	Call for parametric subroutine
G22	Definition of standard subroutine
G23	Definition of parametric subroutine
G24	End of subroutine
G25	Unconditional jump/call
G26	Conditional jump/call if zero
G27	Conditional jump/call if different from zero
G28	Conditional jump/call if smaller than zero
G29	Conditional jump/call if equal to or greater than zero
G30	Display error code defined by K
G31	Store present program’s datum point
G32	Retrieve datum point stored by G31
G33	Threadcutting
G36	Automatic radius blend
G37	Tangential approach
G38	Tangential exit
G39	Chamfering
G40	Cancellation of radius compensation
G41	Left hand radius compensation
G42	Right hand radius compensation
G43	Length compensation
G44	Cancellation of length compensation
G47	Single block treatment
G48	Cancellation of single block treatment
G50	Loading of the values in the tool offset table
G52	Communication with FAGOR LOCAL AREA NETWORK
G53-G59	Zero offsets
G64	Multiple arc pattern machining cycle
G65	Independent axis execution
G70	Programming in inches
G71	Programming in millimeters
G72	Scaling factor
G73	Pattern rotation
G74	Automatic search for machine reference
G75	Probing
G75 N2	Probing canned cycles
G76	Automatic block generation
G77	Coupling of 4th axis W or 5th axis V with associated axis
G78	Cancellation of G77.
G79	User defined canned cycle
G80	Cancellation of canned cycles
G81	Drilling canned cycle
G82	Drilling canned cycle with dwell
G83	Deep drilling canned cycle
G84	Tapping canned cycle
G85	Reaming canned cycle
G86	Boring canned cycle with G00 withdrawal
G87	Rectangular pocket canned cycle
G88	Circular pocket canned cycle
G89	Boring canned cycle with G01 withdrawal
G90	Programming of absolute coordinates
G91	Programming of incremental coordinates
G92	Preselection of coordinates
G93	Preselection of polar origin
G94	Feedrate F in mm/min. (inches/min.)
G95	Feedrate F in mm/rev. (inches/rev.)
G96	Constant surface feed
G97	Constant surface speed at the center of the tool
G98	Tool return to starting plane on completing a canned cycle
G99	Tool return to reference (approach) plane on completing a canned cycle

M Codes

M Codes	Description
M00	Program stop
M01	Conditional stop of program
M02	End of program
M30	End of program with return to beginning
M03	Clockwise start of the spindle
M04	Counter-clodwise start of the spindle
M05	Spindle stop
M06	Tool change code
M19	Analog S output (creep) for tool change and spindle orientation
M22,M23,M24,M25	Operation with pallets
M41,M42,M43,M44	Spindle range selection
M45	Selection of rotation speed of the live tool and that of the synchronized tool.

Fagor 8025/8030T G Codes M Codes

Fagor 8025/8030 Models T TG TS programming G codes / M codes complete lists.

G Codes

G Codes	Description
G00	Positioning
G01	Linear interpolation
G02	Clockwise circular helical interpolation
G03	Counter-clockwise circular helical interpolation
G04	Dwell, duration programmed by means of K
G05	Round corner
G06	Circular Interpolation with absolute center coordinates
G07	Square corner
G08	Arc tangent to previous path
G09	Arc programmed by three points
G14	Activation of C axis in degrees
G15	Machining the cylindrical surface of a part
G16	Machining the surface of a part face
G20	Call for standard subroutine
G21	Call for parametric subroutine
G22	Definition of standard subroutine
G23	Definition of parametric subroutine
G24	End of subroutine
G25	Unconditional jump/call
G26	Conditional jump/call if zero
G27	Conditional jump/call if different from zero
G28	Conditional jump/call if smaller than zero
G29	Conditional jump/call if equal to or greater than zero
G30	Display error code defined by K
G31	Store present program’s datum point
G32	Retrieve datum point stored by G31
G33	Threadcutting
G36	Automatic radius blend (controlled corner rounding)
G37	Tangential approach
G38	Tangential exit
G39	Chamfering
G40	Cancellation of radius compensation
G41	Left hand radius compensation
G42	Right hand radius compensation
G47	Single block treatment
G48	Cancellation of single block treatment
G50	Loading of the values in the tool offset table
G51	Correction of the dimensions of the tool in use
G52	Communication with FAGOR LOCAL AREA NETWORK
G53-G59	Zero offsets
G64	Multiple arc pattern machining cycle
G65	Independent axis execution
G66	Pattern repeat (roughing canned cycle following part shape)
G68	Roughing canned cycle (X)
G69	Roughing canned cycle (Z)
G70	Programming in inches
G71	Programming in millimeters
G72	Scaling factor
G74	Automatic search for machine reference
G75	Probing
G75 N2	Probing canned cycles
G76	Automatic block generation
G81	Canned turning cycle with straight sections
G82	Canned facing cycle with straight sections
G83	Deep hole drilling
G84	Turning with arcs
G85	Facing with arcs
G86	Longitudinal threadcutting cycle
G87	Face threadcutting cycle
G88	Grooving cycle (X)
G89	Grooving cycle (Z)
G90	Programming of absolute coordinates
G91	Programming of incremental coordinates
G92	Preselection of coordinates and setting of max. S value
G93	Preselection of polar origin
G94	Feedrate F in mm/min (inch/min.)
G95	Feedrate F in mm/rev (inch/rev.)
G96	Speed S in m/min (feet/min.) (Constant surface speed)
G97	Speed S in rev/min.

M Codes

M Codes	Description
M00	Program stop
M01	Conditional stop of program
M02	End of program
M30	End of program with return to beginning
M03	Clockwise start of the spindle
M04	Counter-clodwise start of the spindle
M05	Spindle stop
M19	Spindle orientation
M41,M42,M43,M44	Spindle range selection
M45	Selection of rotation speed of the live tool and that of the synchronized tool.
