Complete G Codes & M Codes Guide for Fagor 101/102 CNC Systems

Fagor 101 / 101S / 102 / 102S programming G codes / M codes complete lists.

Fagor 101/102 Introduction

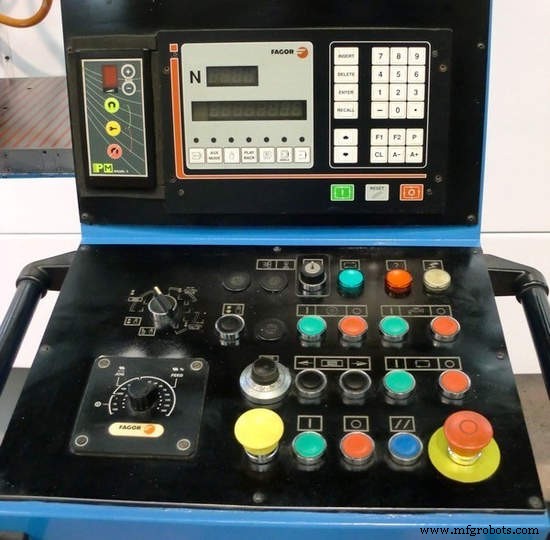

The FAGOR 101/102 CNC may be integrated into the machine’s electrical cabinet and it gathers, in a single unit, all the most powerful and simple operating characteristics of a 1 or 2-axis CNC.
The FAGOR 101/102 CNC excels for being adaptable to multiple applications thanks to its 120 machine parameters. The flexibility and great managing capability of these CNCs make them ideal for a great variety of applications.

Complete G Codes & M Codes Guide for Fagor 101/102 CNC Systems

G Codes

G Codes	Description
G00	Rapid positioning
G01	Linear interpolation
G02	Clockwise circular interpolation
G03	Counter-clockwise circular interpolation
G04	Dwell
G05	Round corner
G07	Square corner
G25	Unconditional jump
G26	Jump if zero
G27	Jump if not zero
G28	Jump if less than zero
G29	Jump if equal or greater than zero
G33	Synchronization
G34	Axis X as infinite slave of another axis.
G45	Increment parts counter
G47	Feedback pulse inhibit Open the position loop of the axes.
G48	Cancel function G47 Close the position loop of the axes.
G51 to G60	Load zero offsets
G60	Load the dimensions of the punch.
G61	F not affected by “P18”
G62	Cancel function G61
G70	Inch programming
G71	Metric programming
G74	Home search
G75	Probing
G81	Batch programming
G84, G80	Rigid tapping
G90	Absolute programming
G91	Incremental programming
G92	Coordinate preset
G93	Modify acceleration ramp

M Codes

M Codes	Description
M00	Program stop
M01	Conditional stop of program
M02	End of program
M30	End of program with return to beginning
M03	Clockwise start of the spindle
M04	Counter-clodwise start of the spindle
M05	Spindle stop
M41,M42,M43,M44	Spindle range selection
