2024 Advanced Stone Deep Processing Solutions – CNC Bridge Saw & Engraving Systems

In 2024, the stone deep‑processing sector has achieved remarkable strides in accuracy, efficiency, and automation. These innovations meet the escalating demand for premium stone fabrication across construction, interior design, monument fabrication, and related fields. Key technologies now include CNC bridge cutting machines, stone engraving units, quartz stone centers, and more.

Ⅰ. Blue Elephant’s Stone Deep‑Processing Production Portfolio

Blue Elephant CNC Machinery Co., Ltd., headquartered at Building 1, Wanda Center, Lixia District, Jinan City (15A03), offers a full spectrum of CNC solutions—from laser and engraving machines to stone and wood processing equipment. Our stone line features five‑axis and four‑axis bridge cutters, stone CNC centers, and engraving rigs.

These machines handle ceramic tables, round tables, bathroom basins, cabinets, coffee tables, floor and stair tiles, TV backdrops, and more.

Ideal for tile manufacturers, stone workshops, decorative firms, construction sites, ceramic workshops, and real‑estate developers.

We provide a seamless experience: design, production, sales, installation, training, and after‑sales support. Our team’s consistent record of industry‑recognised sales excellence underscores our commitment to quality and client success.

Ⅱ. Five‑Axis CNC Bridge Saw Machine

1. ES5 5‑Axis CNC Stone Bridge Saw – Overview

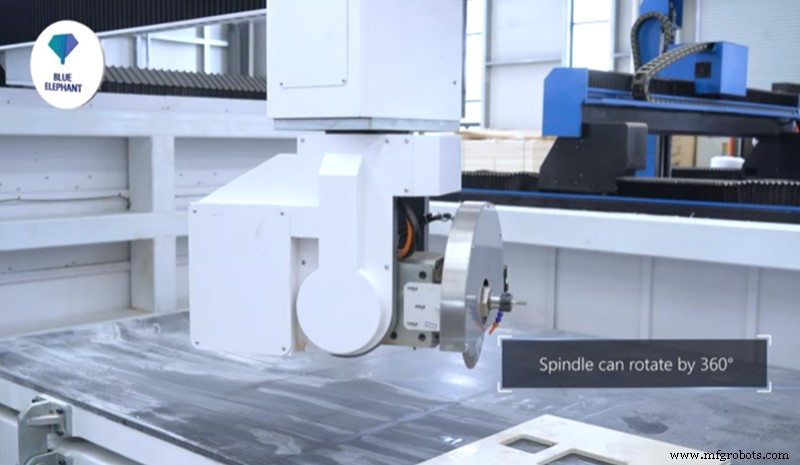

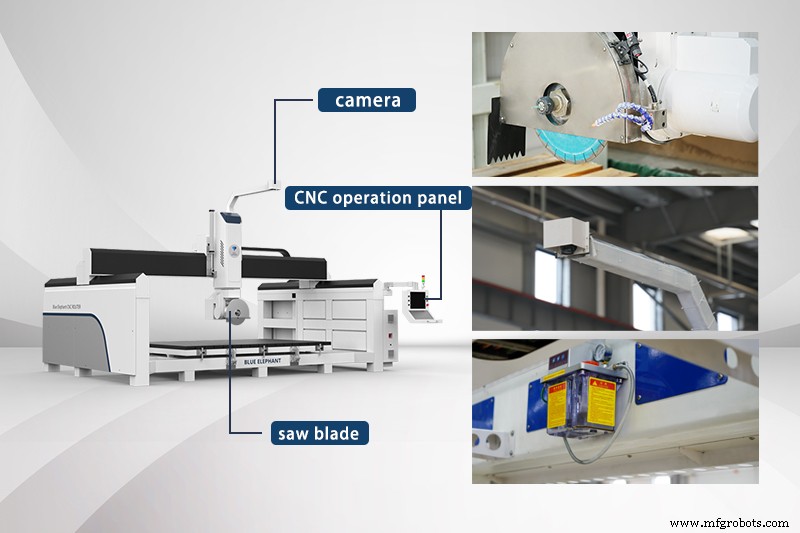

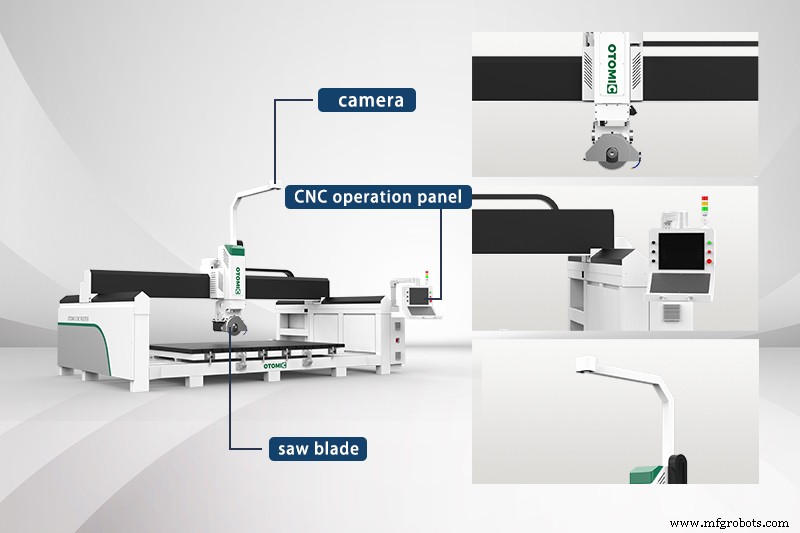

The ES5 is a next‑generation five‑axis bridge cutter featuring a built‑in camera, automatic plate positioning, and a 360° rotating spindle head. It excels at cutting complex shapes—fan‑shaped, circular, polygonal, diamond‑cut, straight lines, and 45° chamfers—on granite, marble, engineered stone, and slate.

Applications include stone slabs, tile cabinets, countertops, dining tables, bathroom fixtures, wall panels, and stair treads. The machine is user‑friendly, supports CAM import, and incorporates top‑tier linear guides and precision racks for high‑speed, stable performance. Its compact footprint simplifies transport, installation, and commissioning.

Parameters

Travel: X 3200 mm × Y 2000 mm × Z 400 mm
Axes: C ±360°, A 0–90°
Speeds: X 30 m/min, Y 30 m/min, Z 15 m/min
Servo motors: X/Y 1300 W, Z 1300 W (braked), A/C 1000 W
Guide rails: X, Y, Z 30# rack
Worktable: 3200 × 2000 mm, square timber
Maximum turning weight: 800 kg
Max. cutting thickness: 100 mm
Ball‑screw Z 3210 PREYP, reducer X/Y Japan SHIMPO

2. Machining Capabilities

45° Cutting

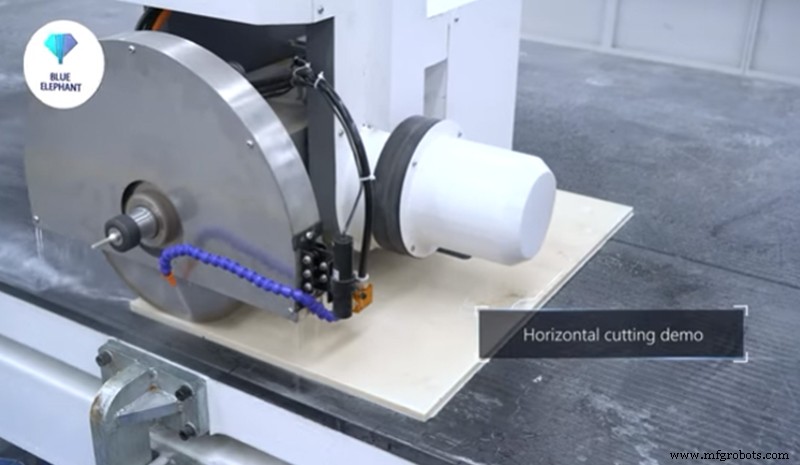

Horizontal Cutting

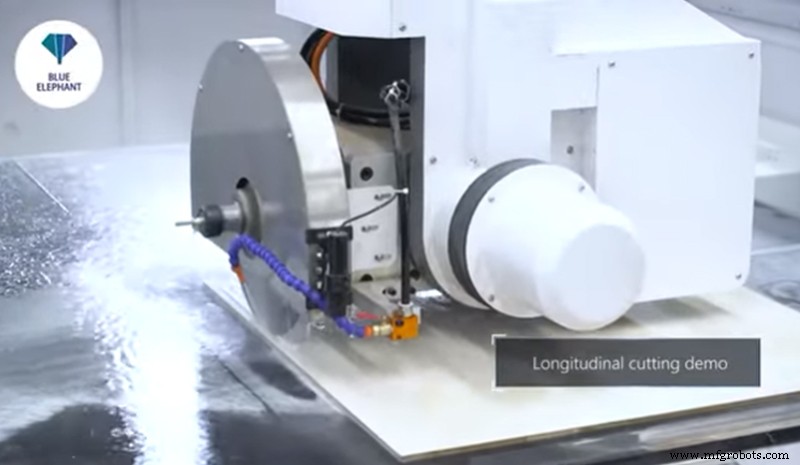

Longitudinal Cutting

Spindle

3. Operational Tips

• Operator training: Five‑axis bridge cutters are complex; certified training ensures safe, efficient use.
• Path simulation: Simulate the tool path in software before cutting to avoid collisions and errors.
• Axis range: Verify that each axis operates within its safe limits to protect bearings.
• Workpiece fixation: Secure stone firmly to prevent movement and maintain precision.

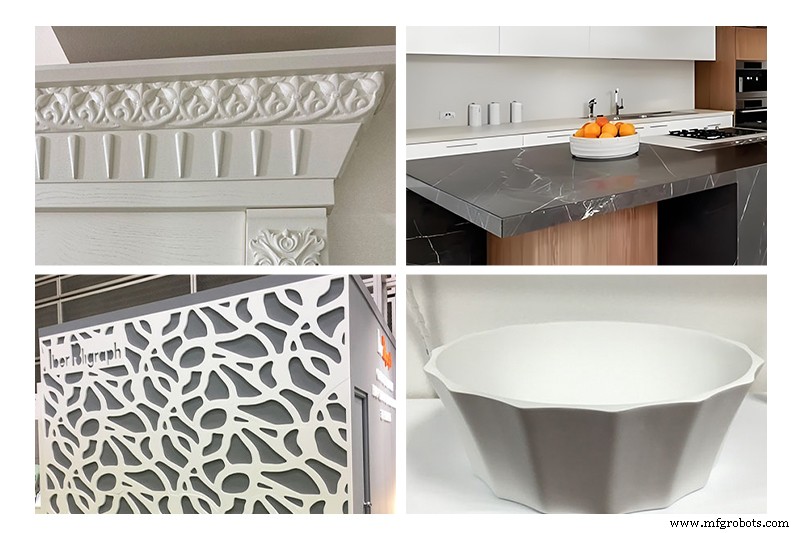

4. Sample Showcase

Ⅲ. Four‑Axis CNC Bridge Saw Machine

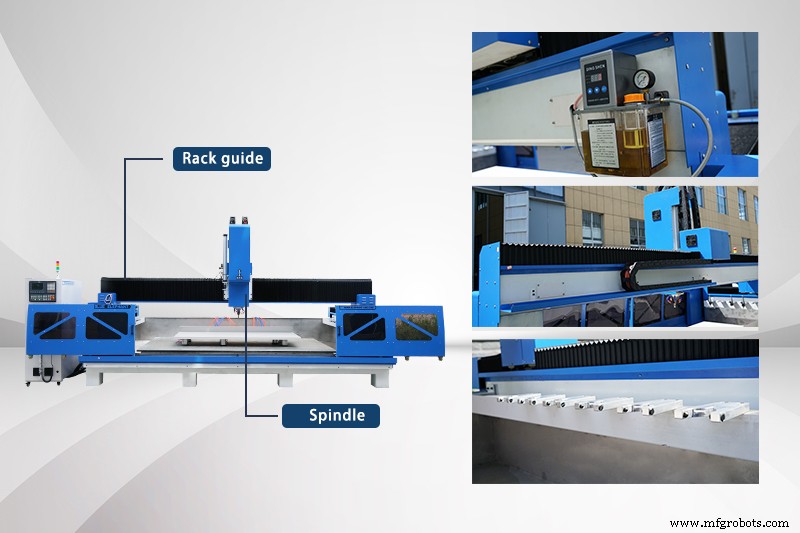

1. ES4‑3220 – 4‑Axis Granite Bridge Saw – Overview

The ES4‑3220’s C‑axis offers 0° or 45° rotation, and optional camera and infrared positioning enhance accuracy. It’s widely adopted for stone slabs, countertops, cabinets, and architectural features.

2. Key Features

• 45° tilting blade for chamfers, grooving, and basin holes.
• 85° workbench flip for rapid loading/unloading.
• Infrared head for precise cutting location.
• Automatic suction cup for safe plate handling.

Parameters

Travel: 3200 × 2000 × 200 mm
C‑axis ±360°, A‑axis 0/45°
Speed: X 30 m/min, Y 30 m/min, Z 10 m/min
Servo motors: X/Y 2 kW HANYU, Z 2 kW HANYU (braked), C 1 kW HANYU
Guide rails: Taiwan 30#
Worktable: 3200 × 2000 mm square timber
Flip angle: 0–85°, weight capacity 800 kg
Blade size: 360 mm, max thickness 60 mm

Inverter: 18.5 kW Fuling
Controller: Blue Elephant custom CAM system
Air pressure: 0.6–0.8 MPa
Voltage: 380 V/3 P/50 Hz
Machine size: 5.85 × 4.5 × 3.6 m
Weight: 3.5 t

3. Machining Demonstrations

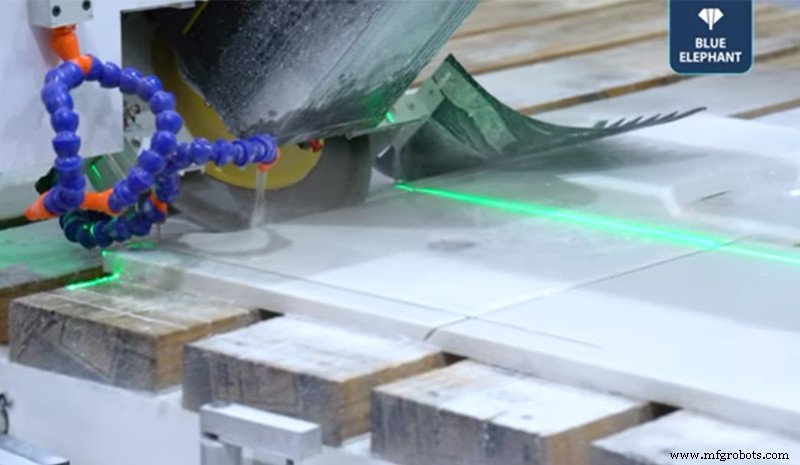

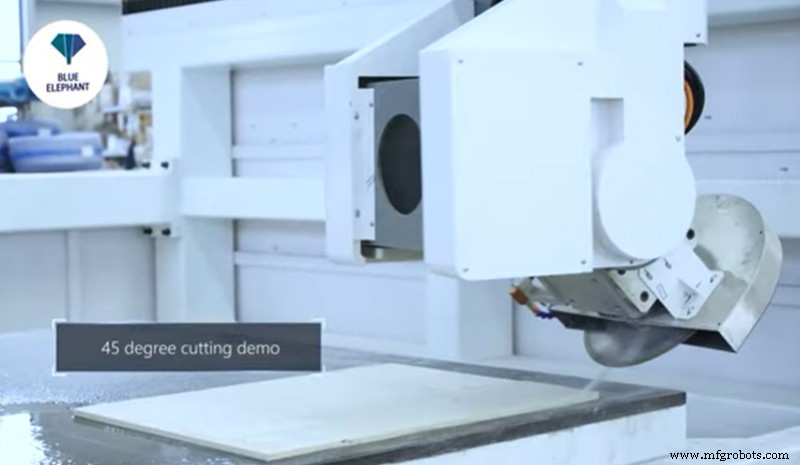

45° Cutting

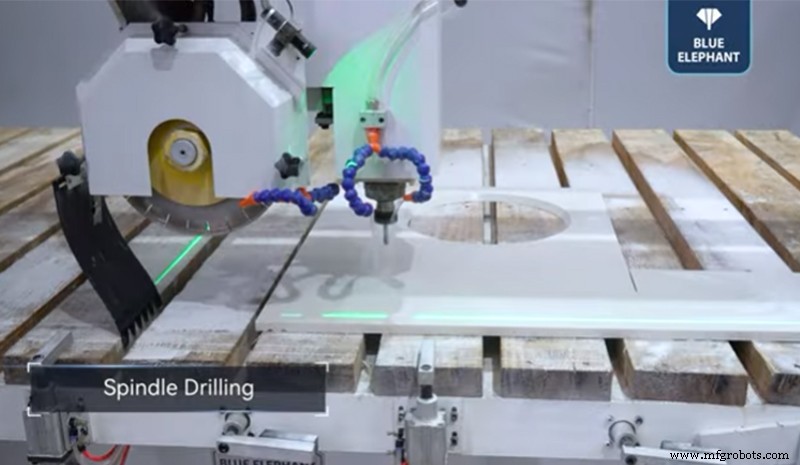

Spindle Drilling

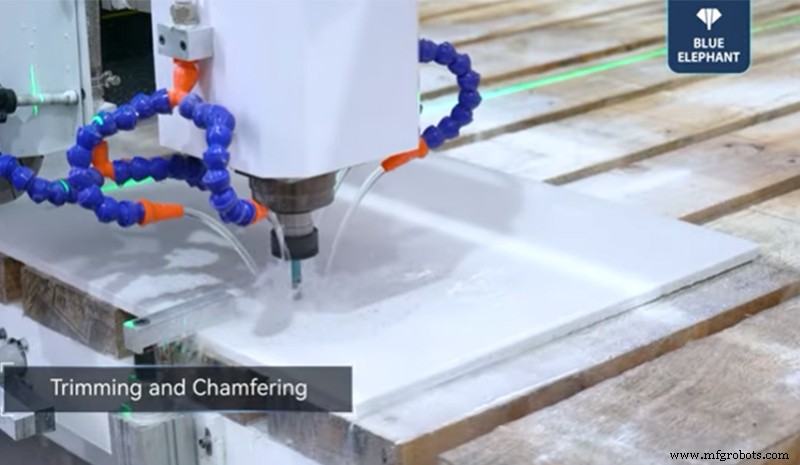

Trimming & Chamfering

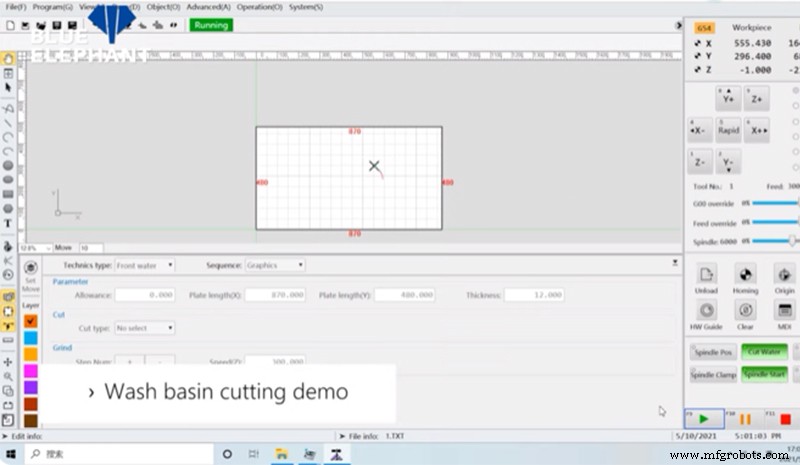

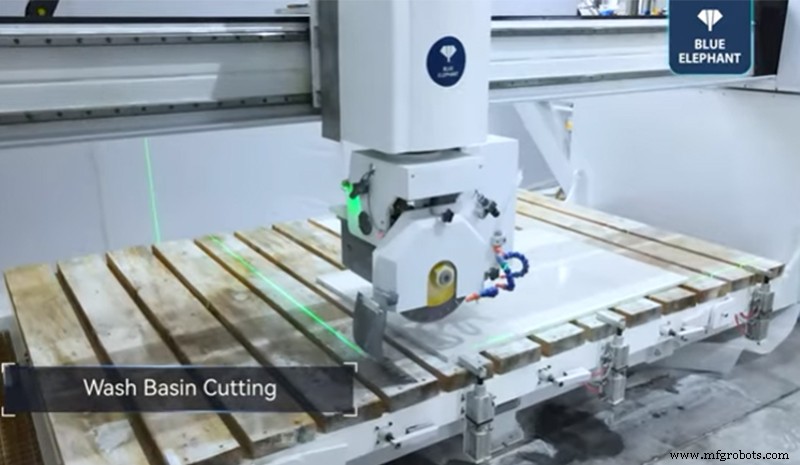

Wash Basin Cutting

4. Safety & Maintenance

• Wear PPE (glasses, gloves, dust mask).
• Stop immediately if abnormal noise/vibration appears.
• Maintain consistent cutting speed to avoid tool wear.
• Know the emergency stop location for rapid shutdown.

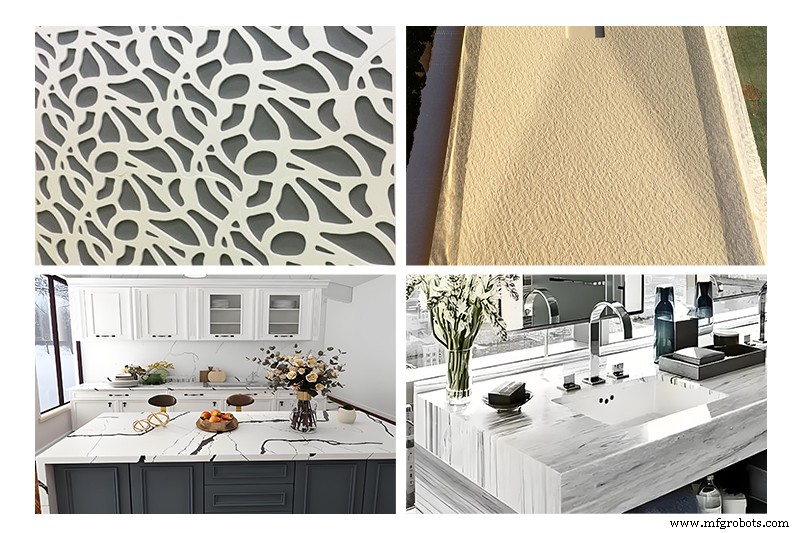

5. Sample Showcase

Ⅳ. Stone CNC Machining Center

1. ES3‑3015 – Automatic Quartz Stone CNC Center

The ES3‑3015 is a high‑precision machining center that handles kitchen sinks, countertops, basins, and more. It integrates edge grinding, polishing, drilling, milling, and custom‑shape cutting, delivering conventional cuts, 45° bevels, and multi‑angle cuts with a single key.

Features

• Fully automated, smart processing eliminates dust and protects workers from pneumoconiosis.
• Intuitive interface allows operators to start within one day.
• Suitable for kitchen, bathroom, bar island, coffee table, and stone tabletops.
• Heavy‑duty body with quenching treatment for durability.

Parameters

Model: ELECNC3015
X/Y travel: 3000 × 1500 mm (options up to 4000 mm)
Z travel: 500 mm (options 400 mm)
Spindle: Kenturn 7.5 kW water‑cooled ATC
Tool magazine: 12‑slot
Control: Syntec 60WED, YASKAWA servo 1 kW
Guide rails: Taiwan 30#; Z: Taiwan TBI high‑precision ball screw
Automatic lubrication and tool calibration

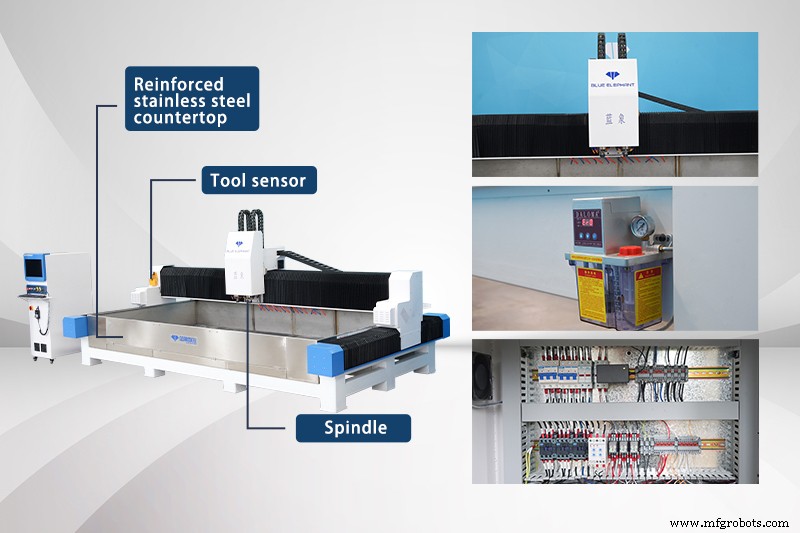

Machining Highlights

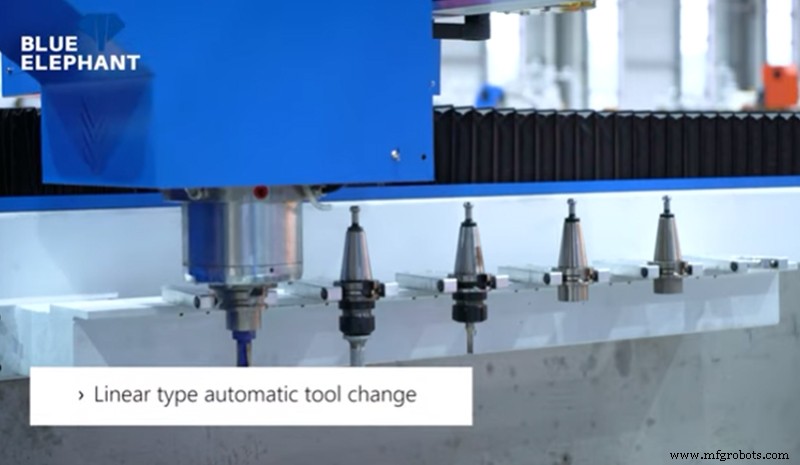

Linear Tool Change

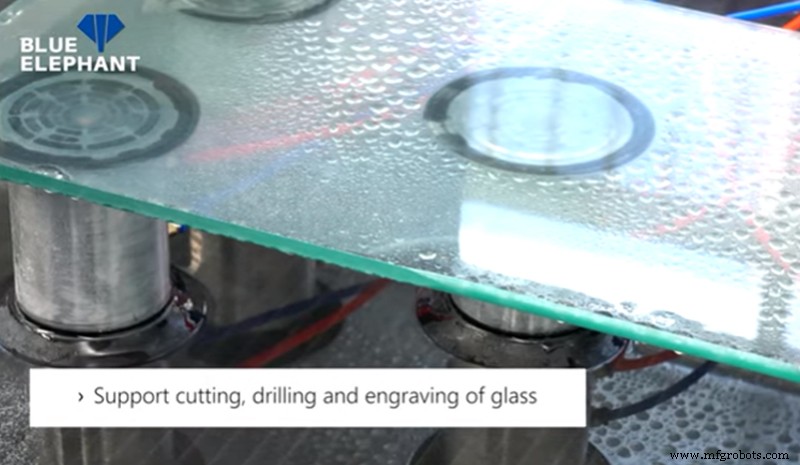

Glass Cutting, Drilling & Engraving

Wash Basin Cutting

Machine Considerations

• Validate CNC program to avoid errors.
• Replace worn tools promptly to preserve accuracy.
• Avoid overload to protect equipment and quality.

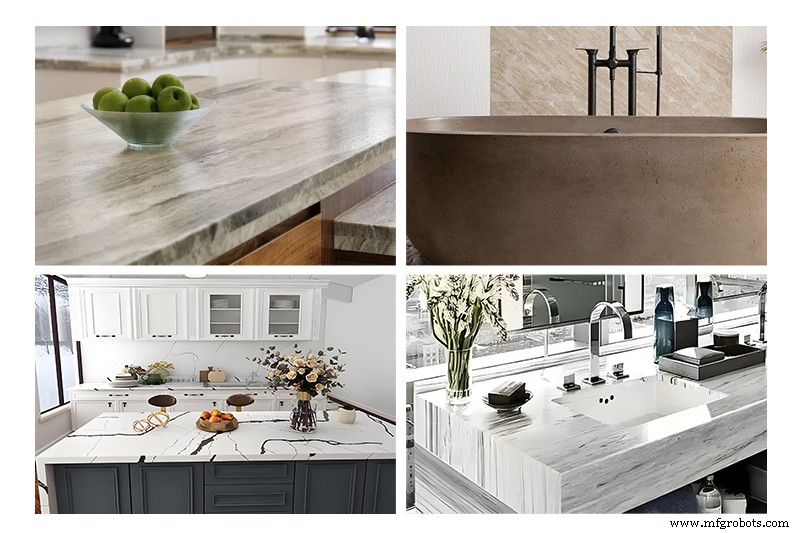

Sample Showcase

2. ELECNC‑1530 – Two‑Process Countertop CNC Center

Overview

Designed for rapid edging, engraving, and polishing of quartz and rock slabs. Features 0–30 m/min cutting speed, water‑cooled spindle, and automatic tool change (12 tools). Stainless steel table ensures stability.

Key Features

• One‑button switching between edging and engraving.
• 3‑second rapid tool change for high throughput.
• Integrated slotting, punching, polishing, cutting, and hollowing.
• Versatile material handling: stone, quartz, glass, etc.

Parameters

Model: ELECNC1530
X/Y travel: 1500 × 3000 mm (options up to 4000 mm)
Z travel: 200 mm (options up to 400 mm)
Spindle: 5.5 kW water‑cooled, 2 spindles
Inverter: 5.5 kW
Command: G‑code & M‑code
Travel speed: 60 m/min, working speed 0–30 m/min
Accuracy: ±0.03 mm

Sample Highlights

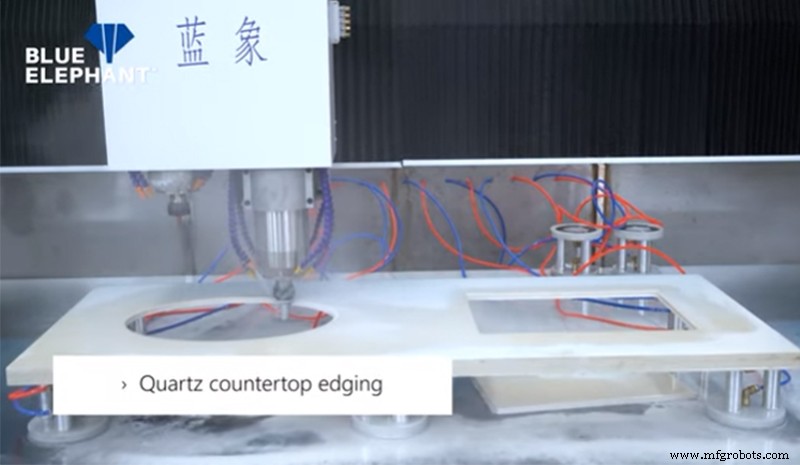

Quartz Countertop Edging

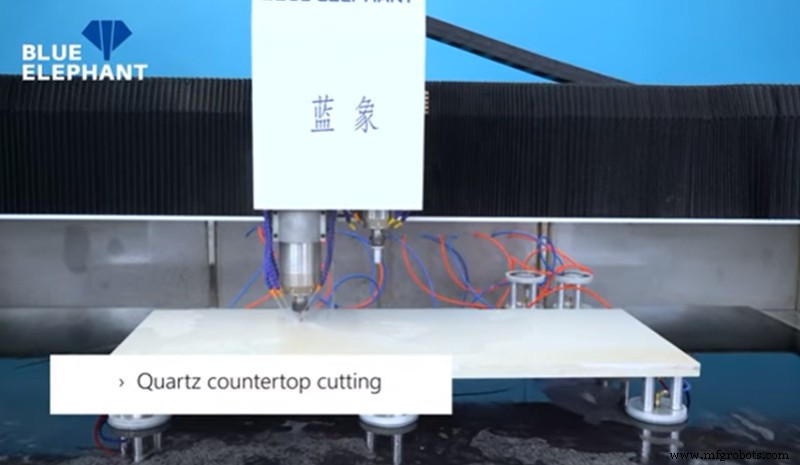

Quartz Countertop Cutting

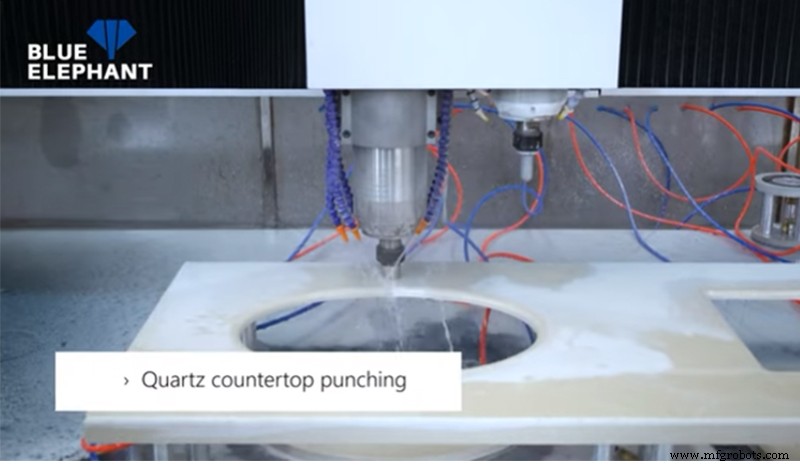

Quartz Countertop Punching

Machine Considerations

• Adjust cutting depth to material thickness.
• Ensure cooling system is operational to prevent overheating.
• Maintain safe distance from rotating blades; always power off during maintenance.
• Monitor real‑time for abnormal sounds or tool wear.

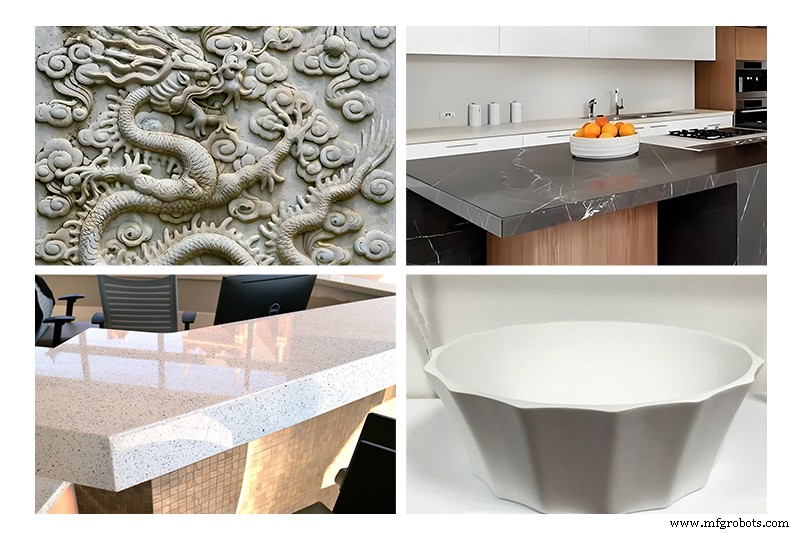

Processing Samples

Ⅴ. Stone Engraving Machine

1. ELECNC‑1815S – Multi‑Head 3D Stone Carving CNC

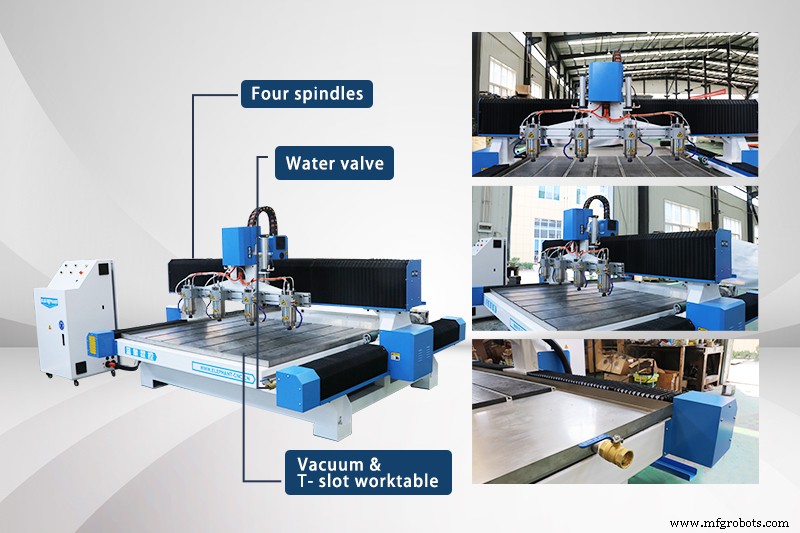

Our engraving rigs come in single‑head and multi‑head configurations, featuring imported linear guides, high‑precision helical gears, and a load‑bearing redundancy system. The robust steel frame and double‑layer cabinet reduce vibration, ensuring sub‑millimeter positioning accuracy even under a six‑ton load.

Features

• Integrated water spray to cool the spindle and extend tool life.
• Optimised for stone, metal, and hardwood workpieces.
• Dust‑proof, anti‑static enclosure protects control electronics.

Parameters

Model: ELECNC1815‑4S
X/Y travel: 1800 × 1500 mm (options up to 4000 mm)
Z travel: 200 mm (options up to 500 mm)
Spindle: 3 kW water‑cooled, 24000 RPM (optional 4.5/5.5/6 kW)
Inverter: 3.7 kW Fuling
Control: Mach3, YASKAWA stepper drives
Guide rails: Taiwan 20#; Z: Taiwan TBI ball screw
Dust covers, cooling, and lubrication systems built‑in

Machine Considerations

• Keep the operating area clean to prevent slips.
• Replace worn tools immediately; avoid cutting with dull bits.
• Know the emergency stop location for quick shutdown.

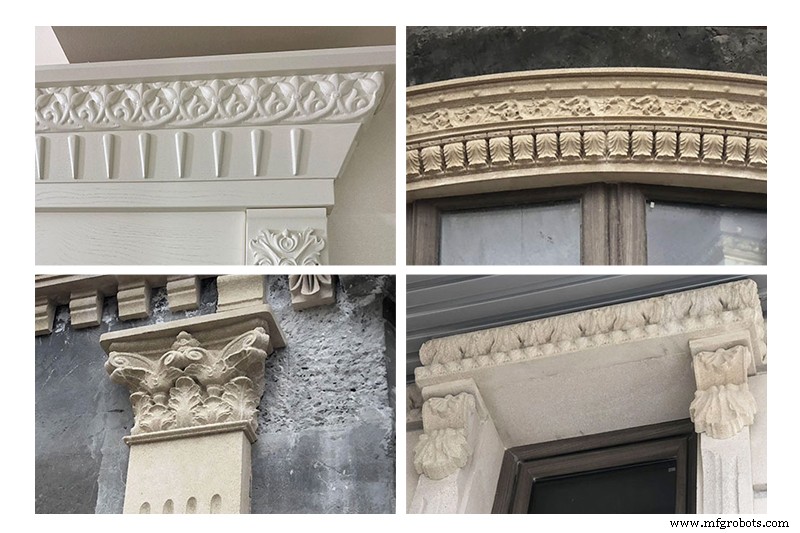

Sample Showcase

Ⅵ. Future Outlook for Stone Deep‑Processing Equipment

The demand for stone continues to grow with urbanization and infrastructure expansion. Stone’s aesthetic durability positions it at the forefront of high‑end architectural decoration. Consequently, the deep‑processing industry is pivoting toward higher efficiency and smarter, AI‑driven solutions—offering a vast horizon for growth and innovation.

Ⅶ. Conclusion

Blue Elephant’s 2024 line—five‑axis and four‑axis bridge saws, advanced machining centers, and versatile engraving rigs—combines rigorous quality control with comprehensive after‑sales support. Partner with us to elevate your stone‑processing capabilities.

For more information, visit https://www.elephant-cnc.com/ or contact us via WhatsApp at +86‑15064026772.
