LM386 Audio Amplifier IC: In-Depth Guide & Practical Uses

You might have consciously or unconsciously come across the IC LM 386 amplifier for audio enthusiasts. It draws power from low voltage sources like batteries, for instance, to power the audio devices.

So, the purpose of this article would be to familiarize ourselves with the ins and outs of the LM386. By the time we complete the piece, we will fully comprehend the workings of the LM386.

What is IC LM386?

As stated earlier, the LM386 is an IC that works as an amplifier. It uses a low power supply from batteries or a common DC input type of electricity. The LM386 IC comes with an 8-pin configuration whereby it has two gains, ground, Vout, Bypass, among others.

Interestingly, the voltage default gain usually is adjustable to 20, but you can also amplify this gain to 200 by having external resistors and capacitors co-joining the IC. This adjustment makes it possible to control the volume from an external audio source accordingly.

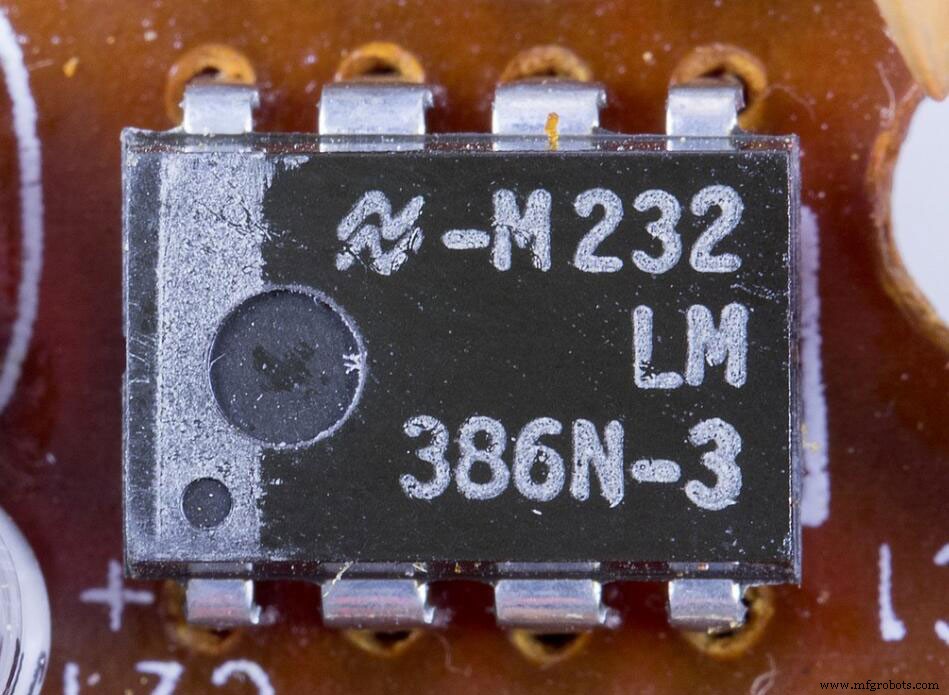

( an up-close photo of an LM386 IC)

IC LM 386: Characteristics of the LM386

The LM386 IC bears some unique traits, as discussed below.

• Distortion of less than 0.2%
• Low supply voltage of 4V to 15V
• Minimal static power drain of 4mA
• Maximum analog input voltage of 0.4V
• Speaker impedance 4Ω
• Wide voltage gain range of 20 to 200(26dB to 46dB)
• It has an 8 Pin configuration

LM386 Pin Configuration

The LM386 has an 8-pin configuration and is as depicted below.

Pin no	Pin name	Function
1	Gain	Adjust the gain of the amp by connecting IC to an external capacitor
2	-IN Inverting	It is the inverter pin and has a connection to ground
3	+IN Non-Inverting	Provides audio signal
4	GND	Ground pin connected to the ground terminal
5	Vout	Output pin for output audio to the speaker
6	Vss/Vcc	Connects to power
7	Bypass	Links to a decoupling capacitor
8	Gain	Adjust the amp’s gain by connecting IC to an external capacitor

LM386 Audio Amplifier Circuit Diagram and Working Principle

You can quickly build an audio amplifier with minimal components; the LM386 IC, capacitors, potentiometer, couple resistors, a power source of 12 V, a speaker of 4Ω, a breadboard, and then connect your wires, and you are good to go. You need to know that the amplifier has three blocks: Power and Output, Gain control and Bypass.

Once you have all three, you can design the circuit, which is not very technical.

To begin with, connect the power supply pins 4 to the ground pin 6.

You can then connect your input pin from any audio device, let’s say, a stereo or mobile phone. Most have the 3.5mm connector, which generally has the ground, left, and right audio.

Then you can control the input level by using a potentiometer at the input. Also, a capacitor connected to the information will remove DC components.

The gain will automatically adjust to 20, but when you connect an external capacitor between pin 1 and 8, the payment rises to 200.

When it comes to the output connection, connect a 10 Ω external resistor and a 0.05 µF capacitor in series with the GND pin and the Vout pin of the LM386 IC. It will now form a Zobel network which will fully utilize the input impedance.

You can connect your portable speaker with impedance ranges of between 4 Ω to 32 Ω because the IC will be optimal within these ranges.

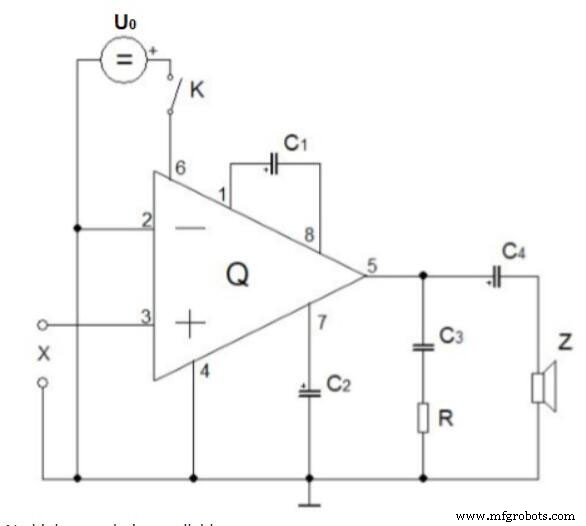

( a 2D diagram of the LM386 IC)

IC LM 386: Application

The LM386 IC is the most common type of IC in audio devices. So it finds use in most of the day-to-day devices. Its application includes;

• FM radio amplifiers
• Power amplifiers
• Wienbridge oscillator
• Portable audio players
• Voice recorders
• Intercoms
• Audio Boosters

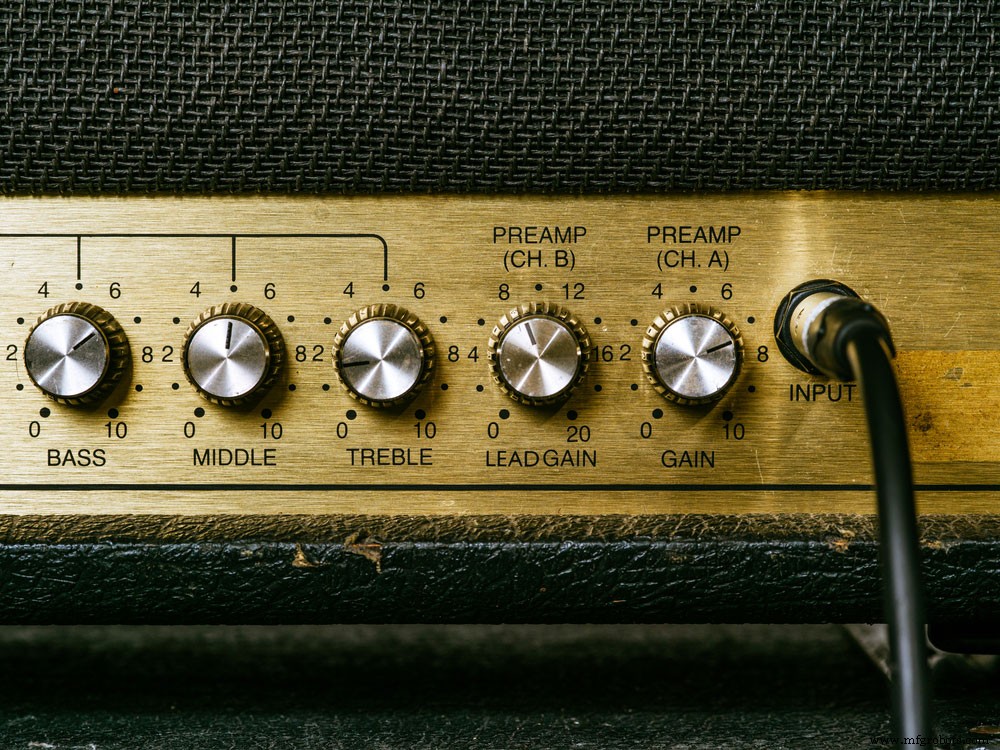

(An image of an amplifier that uses the LM386 IC)

Conclusion

As we come to the end of the article, we hope that you can effectively use an LM386 in all your audio projects. When it comes to enhancing the audio quality of any device, integrating the LM386 IC is crucial. It is an IC that finds daily use in everyday devices.

If you need further clarification regarding the LM386, feel free to contact us, and we will be glad to help.
