Insert Molding vs. Overmolding: Selecting the Optimal Multi‑Material Injection Process

Published on July 6, 2022

Originally published on fastradius.com on July 6, 2022

Injection molding remains the industry standard for producing large quantities of identical plastic parts quickly and cost‑effectively. Within this umbrella, two specialized techniques—insert molding and overmolding—allow manufacturers to integrate additional materials or components into a single part, eliminating the need for post‑assembly steps and reducing overall production complexity.

What Is Insert Molding?

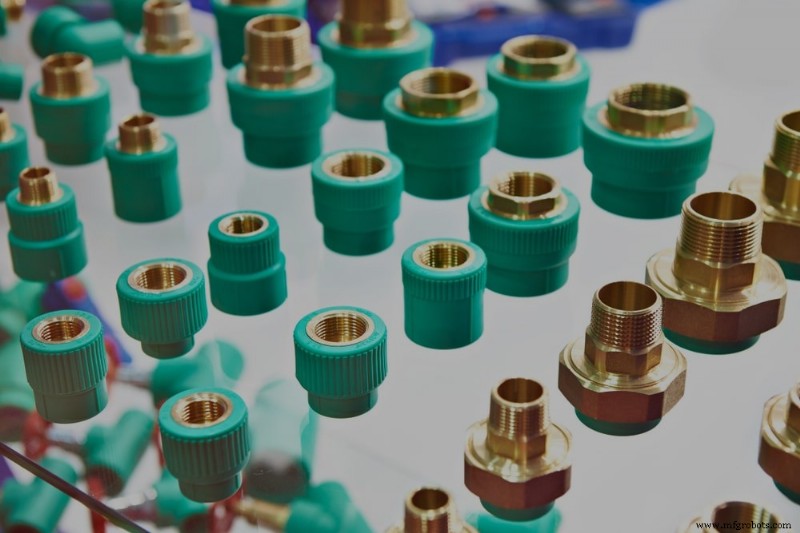

Insert molding injects molten plastic around a pre‑placed insert—typically metal—to form a robust, integrated component. This method is ideal when a part requires a hard metal element such as pins, blades, threaded nuts, or tool shanks, and when the insert can be sourced or fabricated separately. By bonding the metal directly to the plastic, insert molding eliminates the need for separate assembly, saving time and reducing potential points of failure.

What Is Overmolding?

Overmolding, also known as two‑shot or multi‑shot injection molding, creates a part in two stages. First, a thermoplastic substrate is formed. Then, a second, often softer or more flexible material is injected onto, around, or into the substrate. The result is a single, cohesive part with distinct material zones—such as a rigid body and a compliant grip. Overmolding is commonly used for items that require varying tactile or protective characteristics, such as toothbrushes, medical instruments, disposable razors, phone cases, and electronic enclosures.

Insert Molding vs. Overmolding: Key Differences

Process

Insert molding uses a single injection cycle around a pre‑placed insert. Overmolding requires two distinct injection steps, each with its own mold and shot.

Cycle Time

Because insert molding only involves one molten‑plastic shot, its cycle time is typically faster than overmolding’s two‑shot process. However, the need for custom inserts can sometimes offset this advantage.

Cost

Both techniques reduce assembly labor and improve part integrity. Overmolding is generally more expensive—especially for prototypes—due to the requirement of two separate molds. Insert molding can be more cost‑efficient when a suitable metal insert is readily available.

Applications

Use overmolding when you need:

• Different electrical or thermal properties across a surface
• Enhanced shock absorption or vibration damping
• Multicolored or textured plastic finishes
• A comfortable, non‑stick grip
• Embedded soft seals or cushioning

Use insert molding when your design includes:

• A metal component that must be integrated during molding
• Wires, electronic parts, or circuit boards that require a solid substrate
• A design that avoids the complexity of a two‑shot mold
• Threaded inserts or precision metal elements

Choosing the Right Process for Your Project

Deciding between insert molding and overmolding depends on material requirements, part functionality, and production volume. Both methods eliminate adhesives and secondary assembly, but each offers unique benefits that align with specific product goals.
