Mach3 Turning G‑Code Reference Guide

Mach software has evolved to be the best available PC CNC software on the market. Not only is it extremely affordable to industry, and the hobbyist, it is pioneering in its features, and continuing development.

Converts a standard PC to a fully featured CNC controller suitable for controlling the following: Lathe ,Mill, Plasma Cutter, Router, Engravers etc.

For Mach3 Mill G code read Mach3 Mill G Code List

Mach3 Main Features

• Up to 6 axis CNC control
• Allows direct import of DXF BMP JPG and HPGL.
• Visual G-Code display
• Generates G-code
• Includes multiple wizards
• Video display of machine
• Touch screen ability

Below is the full List of G-Code for Mach3 Turn

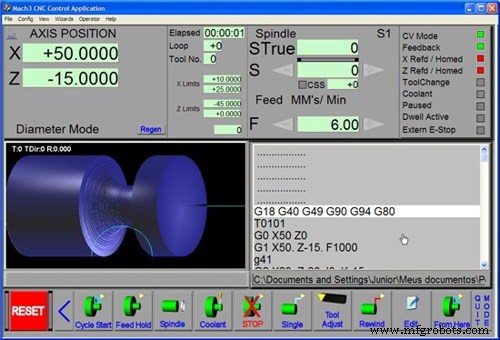

Mach3 Turn

Mach3 Turn G-Code List

G00 Rapid positioning
G01 Linear interpolation
G02 Clockwise circular/helical interpolation
G03 Counterclockwise circular/Helical interpolation
G04 Dwell
G10 Coordinate system origin setting
G15/G16 Polar Coordinate moves in G0 and G1
G17 XY Plane select
G18 XZ plane select
G19 YZ plane select
G20 Inch unit
G21 Millimetre unit
G28 Return home
G28.1 Reference axes
G30 Return home
G32 Threading
G40 Cancel nose radius compensation
G41/G42 Start nose radius compensation left/right
G50 Reset all scale factors to 1.0
G51 Set axis data input scale factors
G52 Temporary coordinate system offsets
G53 Move in absolute machine coordinate system
G54 Use fixture offset 1
G55 Use fixture offset 2
G56 Use fixture offset 3
G57 Use fixture offset 4
G58 Use fixture offset 5
G59 Use fixture offset 6 / use general fixture number
G61/G64 Exact stop/Constant Velocity mode
G76 Canned cycle – screw cutting
G77 Canned cycle
G78
G80 Cancel motion mode (including canned cycles)
G81 Canned cycle – drilling
G82 Canned cycle – drilling with dwell
G83 Canned cycle – peck drilling
G90 Absolute distance mode
G91 Incremental distance mode
G92 Offset coordinates and set parameters
G92.x Cancel G92 etc.
G94 Feed per minute mode
G95 Feed per rev mode
G98 Initial level return after canned cycles
G99 R-point level return after canned cycles
