Haas M35: Move Coolant Spigot Up One Position – Mill Manual
Haas M35 COOLANT SPIGOT POSITION UP
M35 COOLANT SPIGOT POSITION UP, DECREMENT (-1)
M35 decrements the coolant spigot position up one place.

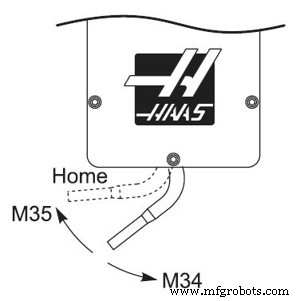

Decrementing the spigot position causes the spigot to move up toward the spigot home position. The home position is designated as zero.
M35 Example
M35

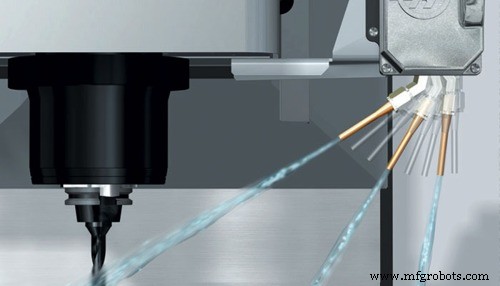

If the current spigot position is 5 and M35 is executed, then the current spigot position will move up to 4. The spigot home position for a horizontal mill places the spigot at the most positive Z axis location. Decrementing the spigot will raise the coolant stream direction.
