Master Cincinnati G‑Codes & M‑Codes for Acramatic 2100E CNC Controls
Cincinnati machining centers G-Codes & M-Codes of Acramatic 2100e cnc control.

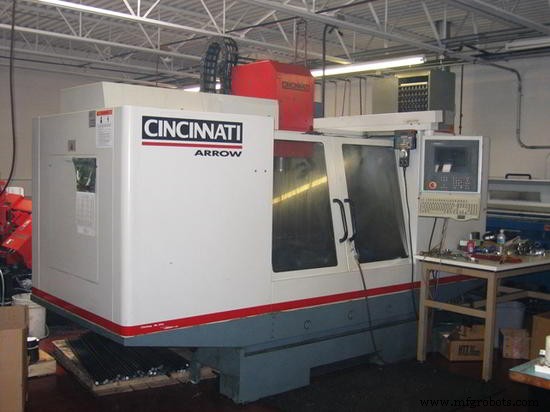

The following list of G & M codes applies to following Cincinnati vertical machining centers with Acramatic 2100E cnc control
- ARROW E/DART 500/750 (ERM)
- ARROW 500/750/1000/1250C (ERM)
- ARROW 1250/1500/2000 (ERD)
Cincinnati G Codes
| G Code | Description |
|---|---|
| G0 | Rapid Traverse (linear) |
| G1 | Linear Interpolation |
| G2 | Circular/Helical CW |
| G2.01 | Circular/Helical CW (absolute) |
| G2.02 | Circular/Helical CW (incremental) |
| G3 | Circular/Helical CCW |
| G3.01 | Circular/Helical CCW (absolute) |
| G3.02 | Circular/Helical CCW (incremental) |
| G4 | Dwell |
| G7.1 | Cylindrical Interpolation |
| G8 | Suppress Interpolation |
| G9 | Exact Stop |
| G12 | Contouring Rotary Axis Unwind |
| G13.1 | Cylindrical Interpolation Off |
| G15.1 | Polar Coordinate Programming (bolt circle) |
| G15.2 | Polar Coordinate Programming (part contour) |
| G17 | XY Plane Select |
| G18 | YZ Plane Select |
| G19 | ZX Plane Select |
| G22, 22.1 | Milling Cycle Rectangular Face |
| G23, 23.1 | Milling Cycle Rectangular Pocket |
| G24, 24.1 | Milling Cycle Rectangular Inside Frame |
| G25, 25.1 | Milling Cycle Rectangular Outside Frame |
| G26 | Milling Cycle Circular Face |
| G26.1 | Milling Cycle Circular Pocket |
| G27 | Milling Cycle Circular Inside Frame |
| G27.1 | Milling Cycle Circular Outside Frame |
| G28 | Auto Return to Reference Point |
| G29 | Auto Return From Reference Point |
| G36 | Move to Next Operation Location |
| G36.1 | Test for End of Pattern |
| G37 | Cancel Pattern |
| G38 | Rectangular Pattern |
| G39 | Circle Pattern |
| G40 | Cutter Diameter Compensation OFF |
| G41 | Cutter Diameter Compensation On LEFT |
| G42 | Cutter Diameter Compensation On RIGHT |
| G43 | PQR Cutter Diameter Compensation On |
| G45 | Acceleration/Deceleration ON |
| G45.01, 45.02, 45.03 | User Specific Acceleration |
| G45.1 | Acceleration/Deceleration ON (Die Roughing) |
| G45.2 | Acceleration/Deceleration ON (Die Finishing) |
| G46 | Acceleration/Deceleration OFF |
| G50 | Pallet Coordinates |
| G51 | Probe Multiple Axes |
| G51.1 | Vector Probe Surface and Set Offsets |
| G51.2 | Rotary Axis measurement |
| G51.3 | Angle Measurement in X or Y Plane |
| G51.4 | Measure feature to feature XY Plane |
| G51.5 | Measure feature to Feature Z Plane |
| G52 | Local Coordinate System |
| G60 | Positioning Mode |
| G61 | Contouring Mode |
| G61.1 | Automatic Corner Speed Override (Left) |
| G61.2 | Automatic Corner Speed Override (Right) |
| G68 | Tool Probe Cycle Set Tool Length |
| G69 | Tool Probe Cycle Check Tool Length |
| G70 | Inch Programming |
| G71 | Metric Programming |
| G72 | Set Stylus and Tip Dimension |
| G73 | Set Probe Stylus Tip Dimension |
| G74 | Set Probe Length |
| G75 | Locate Internal Corner |
| G76 | Locate External Corner |
| G77 | Locate Surface |
| G77.1 | Stock Allowance |
| G78 | Locate and Measure Bore or Boss |
| G79 | Measure Pocket or Web |
| G80 | Reset Fixed Cycle |
| G81 | Drill Cycle |
| G82 | Counterbore/Spot Drill with Dwell Cycle |
| G83 | Deep Hole Drill (Peck Drill) Cycle |
| G84 | Tap Cycle (Conventional) |
| G84.1 | Rigid Tap Cycle |
| G85 | Bore/Ream Cycle |
| G86 | Bore Cycle |
| G87 | Back Bore Cycle |
| G88 | Web Drill/Bore Cycle |
| G89 | Bore/Ream with Dwell Cycle |
| G90 | Absolute Dimension Input |
| G91 | Incremental Dimension Input |
| G92 | Position Set |
| G92.1 | Position Sets Setup Offset |
| G92.2 | Position Sets Pallet Offset |
| G93 | Inverse Time Feedrate (1/T) |
| G94 | Feed Per Minute Feedrate Mode |
| G95 | Feed Per Revolution Feedrate Mode |
| G96 | Constant Surface Speed |
| G97 | Constant Spindle Speed (S = RPM) |
| G97.1 | Constant Spindle Speed (S = Surface Speed) |
| G98 | Machine Coordinates (tool tip) |
| G98.1 | Machine Coordinates |
| G99 | Position Set Cancel |
| G150 | Scaling OFF |
| G151 | Scaling ON |
Cincinnati M Codes
| M Code | Description |
|---|---|
| M00 | Program Stop |
| M01 | Optional Stop |
| M02 | End of Program (do not put tool away) |
| M03 | Spindle ON CW |
| M04 | Spindle ON CCW |
| M05 | Spindle and Coolant OFF |
| M06 | Tool Change |
| M08 | External Flood Coolant ON |
| M08.1 thru M08.8 | Coolant Jets Position Control (option) |
| M09 | Coolant OFF |
| M10/M10.x | Clamp Rotary Axis #1 –4 |
| M11/M11.x | Unclamp Rotary Axis # 1 — 4) |
| M13 | Spindle ON CW, External Flood Coolant ON |
| M14 | Spindle ON CCW, External Flood Coolant ON |
| M19 | Oriented Spindle Stop |
| M26 | Spindle Axis Full Retract |
| M27 | Through Spindle Coolant |
| M30 | End of Program (put tool away) |
| M34 | Enable Data Acquisition |
| M35 | Disable Data Acquisition |
| M41 | Select Spindle Constant Power Mode |
| M42 | Select Spindle Constant Torque Mode |
| M48 | Feedrate & Spindle Speed Override Enable |
| M49 | Feedrate & Spindle Speed Override Disable |
| M58 | Disarm Spindle Probe (Option) |
| M59 | Arm Spindle Probe (Option) |
| M60 | Swarf Wash ON |
| M61 | Swarf Wash OFF |
| M70 thru M79 | User Definable M Codes (Option) |
| M83 | Part Complete |
| M91 | Swarf Conveyor ON |
| M92 | Swarf Conveyor OFF |
