Sinumerik CYCLE87 Bore 3: Precision Spindle Stop & Rapid Retract
Sinumerik CYCLE87 Bore 3

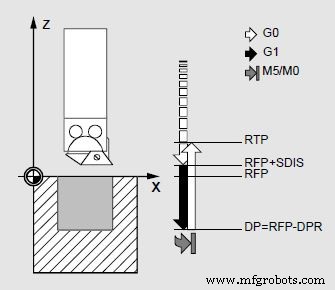

In Sinumerik CYCLE87 “Bore 3” cycle, a spindle stop without orientation is effected on reaching the final drilling depth, followed by a programmed stop. By pressing the NC Start key, the upwards movement is continued at rapid traverse until the retraction plane is reached.
Programming
CYCLE87 (RTP, RFP, SDIS, DP, DPR, SDIR)
Parameters
| Parameter | Description |
|---|---|
| RTP | Return plane (absolute) |
| RFP | Reference plane (absolute) |
| SDIS | Safety distance (enter without sign) |
| DP | Final drilling depth/elongated hole depth/slot depth/pocket depth (absolute) |
| DPR | Final drilling depth/elongated hole depth/slot depth/pocket depth relative to reference plane (enter without sign) |
| SDIR | Direction of rotation Values: 3 (for M3) 4 (for M4) |
