DATRON neo Pro: Ultra‑Precise Linear Scale CNC Machine for Micron‑Level Accuracy

The DATRON neo was first introduced in 2016 as a compact machining system tailored for research, development, and prototyping. Its small footprint allowed installation in non‑industrial environments, while its robust performance earned it early acclaim among engineers.

Shortly thereafter, the Series 2 neo extended these capabilities with added features and a stronger chassis, making it suitable for light industrial production. However, the earlier models were not engineered for continuous 24/7 operation or ultra‑high precision tasks, which limited their adoption in demanding manufacturing settings.

Recognizing this gap, DATRON invested in a new generation of neo machines that could meet the demands of high‑volume, precision‑centric production.

The 2025 neo Lineup

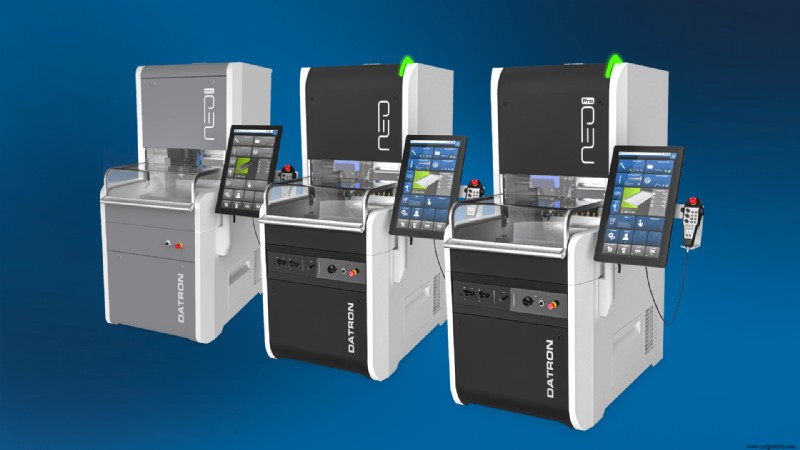

In 2025, DATRON unveiled three new variants at the EMO trade show: the DATRON neo Entry, the DATRON neo, and the DATRON neo Pro.

• DATRON neo Entry preserves the core construction of its predecessor but omits certain premium features, delivering a budget‑friendly option without sacrificing core reliability.
• DATRON neo and DATRON neo Pro both feature a reinforced frame, stiffer gantry, and overall construction improvements, transforming the platform into a production‑ready machine capable of true 24/7 operation.

Key upgrades include:

• A larger coolant tank for extended run times.
• A redesigned automatic tool‑changer cover for smoother tool changes.
• A spindle chiller to maintain optimal cutting temperatures.
• A more precise XYZ touch probe for rapid, accurate work‑piece registration.
• Updated machine feet to enhance stability on the shop floor.
• Production‑floor status indicator lights for real‑time monitoring.
• Improved chip management for cleaner operations.

The DATRON neo Pro introduces a game‑changing feature: linear scales on all three axes. This closed‑loop system provides micron‑level positional feedback, dramatically improving precision and expanding the machine’s suitability for tighter‑tolerance industries.

Why Linear Scales Matter

Without linear scales, a CNC machine relies solely on the rotary encoder mounted at the end of each ball‑screw. While DATRON’s high‑quality ball‑screws ensure good baseline accuracy, tight‑tolerance machining demands a direct measurement of actual position.

Sources of error include:

• Backlash in ball‑screw bearings.
• Mechanical flex and vibration.
• Thermal expansion of the spindle and axis components.
• Wear over extended operating hours.

Linear scales eliminate these variables by providing real‑time, direct feedback of the machine’s actual position. The system employs a magnetic strip printed with alternating north and south poles along the length of each ball‑screw. A readhead sensor traverses this strip, converting magnetic transitions into precise positional data that the controller uses to correct motion in real time.

Linear Scales on the DATRON neo Pro

The DATRON neo Pro is equipped with magnetic, fully enclosed linear scales on the X, Y, and Z axes.

Benefits:

• Immediate, real‑time positional data.
• Automatic compensation for mechanical wear and thermal drift.
• Sealed units for dust‑free operation.
• Uninterrupted high‑speed machining without cycle‑time penalties.

Even after thousands of production hours, the machine maintains the same tolerances it achieved on day one, reducing scrap, rework, and overall cost of quality.

Precision Backed by Verified Performance

Each DATRON neo Pro undergoes DATRON’s proprietary geometry protocol and ISO 230 testing. Typical performance figures are:

• X/Y positional accuracy: ±0.0003″
• X/Y repeatability: ±0.00007″
• Z positional accuracy: ±0.0007″
• Z repeatability: ±0.00005″

Achieving tight‑tolerance parts also depends on workholding, tooling, ambient temperature, machine maintenance, and programming strategy. A high‑precision machine tool, however, is the foundation for consistent, repeatable results.

Industries and Applications that Benefit from Linear Scales

Numerous sectors demand micron‑level accuracy. The DATRON neo Pro’s enhanced precision serves these markets effectively.

Aerospace components

• Brackets, structural fittings, electronics housings, UAV frames, satellite components.

These parts are typically machined from aluminum, making the neo Pro’s high‑speed capabilities ideal.

Medical applications

• Microfluidics, robotic‑surgery components, orthopedic parts, surgical handles, catheter drills, imaging system housings.

Microfluidic chips, for instance, require high‑speed spindle action and tight tolerances—exactly what the neo Pro delivers.

Electronics & Semiconductor precision parts

• Wafer‑handling fixtures, thermal‑management plates (heat sinks, cold plates), pick‑and‑place nests, RF/EMI‑shielded housings.

Typical tolerances of ±0.0003″–±0.0008″ fall well within the neo Pro’s capability.

Telecommunications & 5G

Waveguides machined from 6061‑T6 aluminum demand extremely tight tolerances; the neo Pro meets these specifications with ease.

Electric Vehicle precision components

• Battery enclosures, cooling plates, bus bars, motor housings, rotor and stator parts.

Aluminum parts in EV assemblies benefit from the neo Pro’s consistent, micron‑level accuracy.

Optics

Optical mounts require precise radii and concentricity to maintain alignment.

Additional applications:

• Spacers and shims
• Diaphragms and apertures
• Alignment and testing fixtures

These small, aluminum components thrive on the neo Pro’s high‑speed machining and precise linear scales.

A Highly Capable, Cost‑Effective High‑Precision Solution

With a reinforced frame and closed‑loop linear scale system, the DATRON neo Pro is engineered for demanding industrial tasks that demand high tolerances. It delivers the accuracy of far more expensive precision CNC machines while offering a faster return on investment. Even if ultra‑tight tolerances are not required today, the linear scales guarantee reliable accuracy for years to come, positioning the neo Pro as a long‑term precision solution for small, high‑value parts.
