Custom Control Boosts Accuracy & Flexibility of New Machine Tool

Founded in 1956 in the Detroit metro area, Lincoln Park Boring Co. has a rich history in the automotive, machine tool, transportation and energy industries industries. In recent years, the family owned and operated business has begun been replacing older machines with new ones that can handle new production demands and meet customers’ changing needs.

“The key things we’re looking for right now are accuracy, repeatability and ease of maintenance,” says Rick Yesue, president of Lincoln Park Boring. “How long the machine can hold those accuracies without having major rebuilds done, that’s key right now, and also the speeds of feeds and spindle rates.”

New Machine, More Accuracy

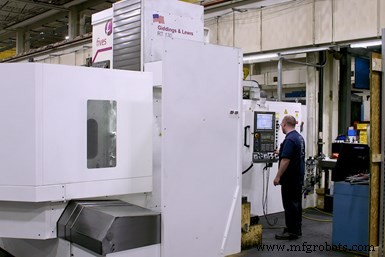

When the shop was ready to add a new horizontal boring mill, it tapped machine builder Fives Giddings & Lewis to help with the project. “Lincoln Park wanted a machine that could mill all the way through to the center line,” says Micah Mullins, regional sales manager for Fives Giddings & Lewis.

Because Lincoln Park Boring is known for its high-accuracy standards, the new machine was equipped with a high-accuracy package. During the manufacture of the new machine in their Fond du lac, Wisconsin plant, Fives Giddings & Lewis had very strict procedures in place to deliver on the product.

Performance and Flexibility

The machine required robust controls that could deliver the performance needed for the type of work Lincoln Park Boring performs. This led Fives Giddings & Lewis, a FANUC-authorized system integrator, to install a FANUC controller on the machine. Yesue agreed that the FANUC control would be a good fit. “(Fives Giddings & Lewis) have a real trust in FANUC, and that helps us have a trust in FANUC,” he says. “We’ve grown and worked together on a number of things, such as this new horizontal boring mill.”

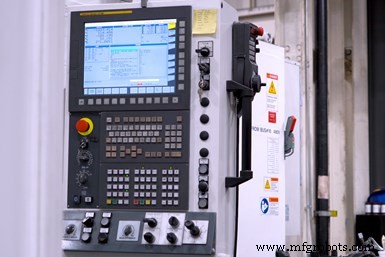

Lincoln Park Boring wanted a CNC control that had the flexibility to be used manually and could enable quick setups for low part runs. Fives Giddings & Lewis partnered with FANUC to customize the control’s human machine interface (HMI) with a subpanel that has a separate joystick that includes the speeds and feeds. This allows operators to use the machine manually, so they don’t have to program the control to produce one or two parts. “That really helped us to deliver that type of solution,” Mullins says. “And FANUC totally supported us. It was a great partnership.”

Results

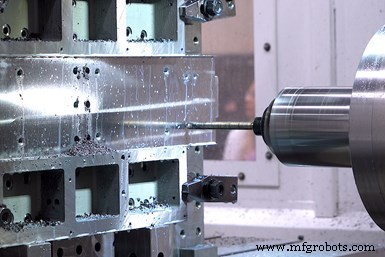

The result is a machine that has more capabilities and can hold tighter tolerances. Additionally, the control is able to run the equipment fast to accommodate rapid travel rates. Yesue says he couldn’t be happier with the end product and believes it will allow the company to go after new business. “FANUC controls are a great control for a boring-mill style machine. It’s a highly capable control and plenty powerful enough for the accuracies needed for this type of work,” Mullins adds.

Additionally, with FANUC offering lifetime support, Lincoln Park Boring won’t have to worry about this control being obsolete in a few years. On top of this, Yesue says his operators don’t have to make a lot of service calls on FANUC products.

“Anything we buy new or retrofit would have a FANUC control,” Yesue says. “Fives Giddings & Lewis and FANUC are where we’re headed in the future.”
