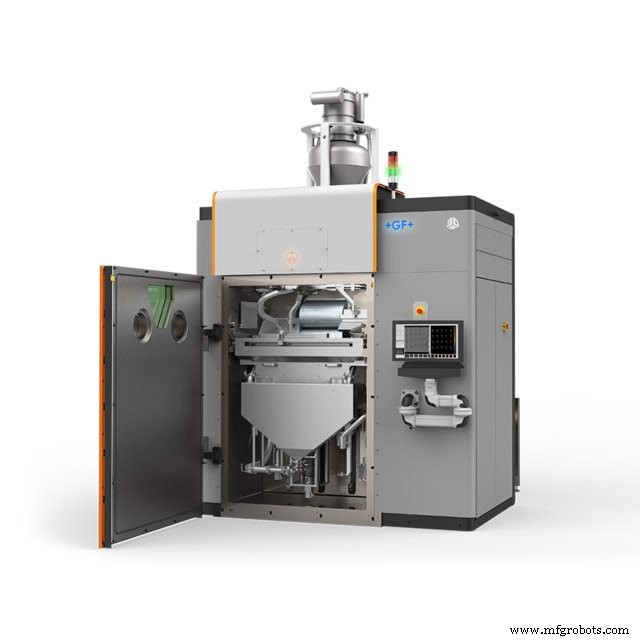

3D Systems DMP Factory 350 – Advanced Metal Additive Manufacturing Solution

• Powder‑based metal additive manufacturing
• Light‑weight, compact design

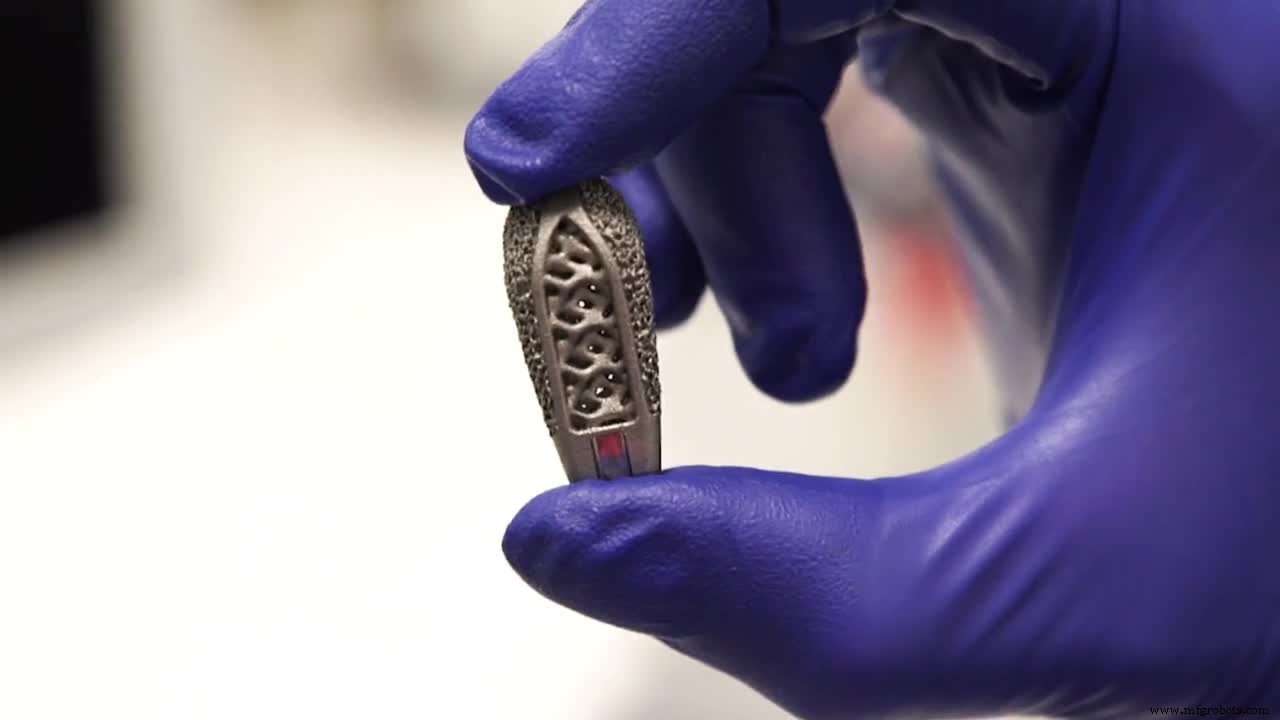

• Optimized for orthopedic and spinal implants
• Streamlined assembly with reduced part counts
• Conformal cooling channels for superior thermal management
• Enhanced fluid flow for efficient fabrication
• Conformal latticework for structural optimization
• Topology‑optimized geometries for performance gains
• Mass‑customization capabilities for tailored parts

The DMP Factory 350 is the result of a continuous feedback loop between 3D Systems’ advanced manufacturing centers and product development teams, delivering an integrated solution for high‑quality metal additive production.

DMP Factory 350 Specifications

• Manufacturer: 3D Systems
• Primary Use: Production & R&D
• Industries Served: Aerospace, Automotive, Medical
• Technology: Direct Metal Printing (DMP)
• Printer Type: Metal
• Launch Year: 2018
• Certifications: CE, NRTL

Supported Materials

• Titanium, Stainless Steel, Iconel, Aluminum, Maraging Steel
• Closed‑material system for consistent quality

Build Volume (XYZ)

• Metric: 275 × 275 × 420 mm
• Imperial: 10.82 × 10.82 × 16.54 in

Key Properties

• Layer Thickness: 5–90 µm
• Laser: 500 W fiber laser (1070 nm)
• Dimensional Accuracy: ±0.1–0.2 % with a minimum tolerance of 50 µm

Operational Requirements

• Operating System: Windows 10 IoT Enterprise
• Software: 3DXpert
• Electrical: 400 V / 20 kVA / 50‑60 Hz / 3‑phase

Machine Footprint & Weight

• Dimensions (Metric): 3580 × 2430 × 3230 mm
• Dimensions (Imperial): 141 × 96 × 127 in
• Weight: 4900 kg (10 800 lb)
