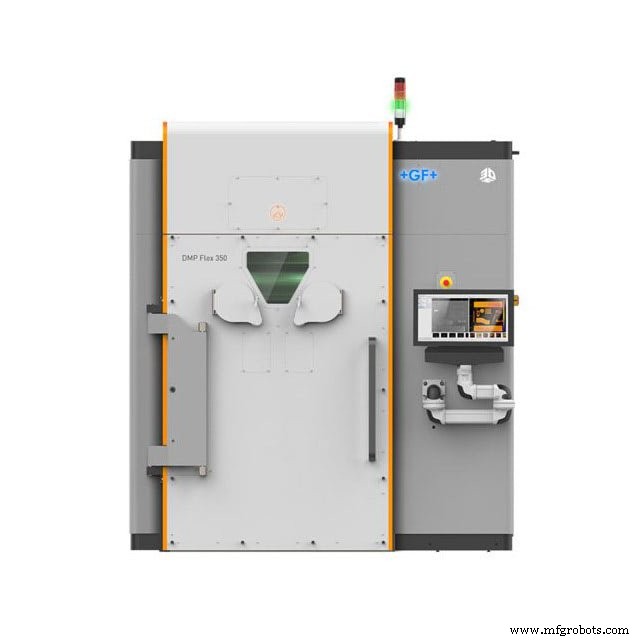

3D Systems DMP Flex 350 – Advanced Metal 3D Printing for Aerospace, Automotive, and Medical Industries

• Reduced weight/light‑weight design
• Orthopedic and spinal implants
• Simplified assemblies
• Reduced number of parts
• Conformal cooling
• Enhanced fluid flow
• Conformal latticework
• Topology optimization
• Mass customization

DMP Flex 350 is engineered for research & development, application development, and serial production. Its modular design allows quick‑swap build modules and fast powder recycling, accelerating turnaround time. A centralized server orchestrates print jobs, material handling, settings, and maintenance, delivering uninterrupted 24/7 productivity.

3D Systems DMP Flex 350 specifications

• Company: 3D Systems
• Application: Production, Research and Development
• Industry: Aerospace, Automotive, Medical
• Technology: DMP
• Printer type: Metal
• Launched in: 2018
• Certifications: CE, NRTL

Materials

• Materials: Titanium, Aluminum, Cobalt Chrome, Stainless Steel, Maraging Steel, Nickel alloy
• Material system: Closed material system

Build size (XYZ)

• Print size metric: 275 x 275 x 420 mm
• Print size imperial: 10.82 x 10.82 x 16.54 inches

Properties

• Layer thickness: 5 – 90 Microns
• Laser: 500 W / Fiber laser, 1070 nm
• Accuracy: ± 0.1‑0.2% with ± 50 Microns minimum

Requirements

• Operating system: Windows 10 IoT Enterprise
• Software: 3DXpert
• Power requirements: 400 V/15 kVA/50‑60 Hz/3 phase

Dimensions (XYZ) & weight

• Dimensions metric: 2360 x 2400 x 2600 mm
• Dimensions imperial: 93 x 95 x 103 inches
• Weight metric: 4200 kg
• Weight imperial: 9240 pounds
