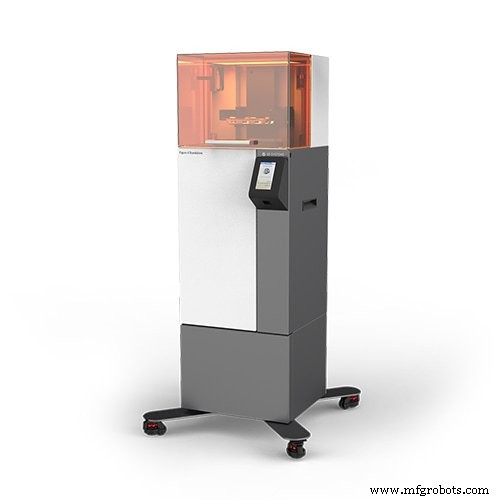

3D Systems Figure 4 Standalone: High‑Accuracy, Industrial‑Grade 3D Printing for Low‑Volume Production

• Print 500 parts per month
• Industrial‑grade materials
• High precision
• Cost‑effective

The Figure 4 Standalone delivers rapid, same‑day prototyping for low‑volume production, combining industrial durability with the accuracy of 3D Systems’ non‑contact membrane technology.

3D Systems Figure 4 Standalone Specifications

• Company: 3D Systems
• Application: Elastomeric parts, medical devices, investment casting, mold making, production, prototyping, tooling
• Industry: Consumer products, electronics, medical
• Technology: Non‑contact membrane Figure 4 technology
• Printer type: Resin
• Launched: 2018
• Certifications: FCC, CE, EMC

Materials

• Rigorous, thermoplastic‑like, rubber‑like, castable, heat‑resistant, biocompatible materials in a closed system

Build Volume (XYZ)

• 124 × 70 × 196 mm (4.9 × 2.8 × 7.7 in)

Key Properties

• Resolution: 1920 × 1080 pixels
• Build rate: Up to 100 mm/h
• Connectivity: Cloud‑based, predictive service via 3D Connect

System Requirements

• Operating system: Windows 7 + 64‑bit (Windows 10/11 supported)
• Software: 3D Sprint
• Power: 100–240 VAC, 50/60 Hz, single‑phase, 4 A

Dimensions & Weight

• Dimensions: 426 × 489 × 971 mm (16.7 × 19.25 × 38.22 in)
• Weight: 34.5 kg (76 lb)
