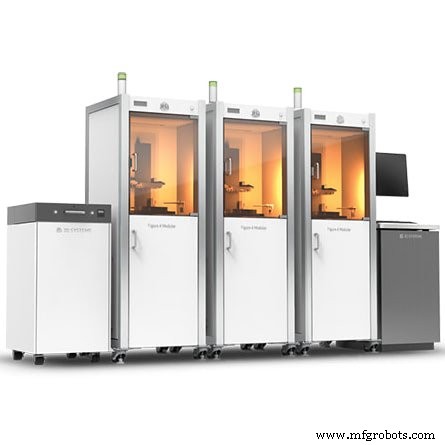

3D Systems Figure 4 Modular: Scalable, Semi‑Automated 3D Production for Low to Mid‑Volume Manufacturing

• Produce up to 10,000 parts per month

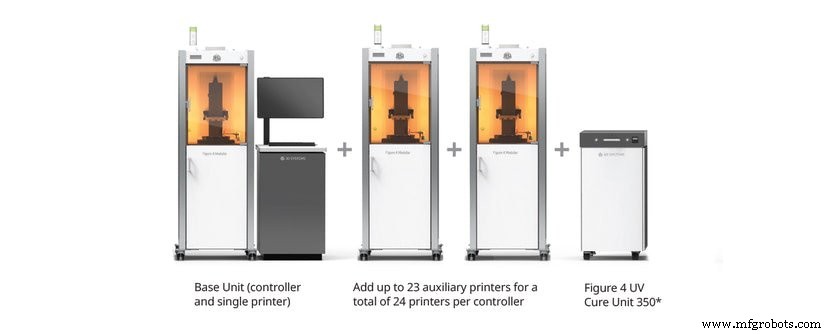

• Expandable to 24 printers per base‑unit controller and printer
• Automated job management and queuing for seamless workflow
• Automated material delivery streamlines supply chain
• Centralized post‑processing ensures consistent quality
• Built for industrial‑grade materials and applications

The modular version of 3D Systems’ Figure 4 delivers a scalable, semi‑automated 3D production solution ideal for low‑to‑mid‑volume manufacturing and bridge production. Print parts and achieve results in hours, not days.

Applications

• Replacement of traditional molding and cast urethane processes
• Rapid functional prototyping and concept modeling
• Production of durable, end‑use plastic parts
• Low‑volume bridge manufacturing
• Short‑run production of plastic articles
• Jigs and fixtures for tooling
• Rapid tooling – molds and master patterns
• Consumer high‑temperature applications with transparency
• Elastomeric prototypes: grommets, seals, hoses, weatherstripping, tubes, gaskets, spacers, and more
• Medical device components

3D Systems Figure 4 Modular Specifications

• Company: 3D Systems
• Applications: Elastomeric Parts, Medical Applications, Investment Casting, Mold Making, Production, Prototyping, Tooling
• Industries: Consumer Products, Electronics, Medical
• Technology: Non‑contact membrane Figure 4
• Printer Type: Resin
• Launched: 2019
• Certifications: FCC, CE, EMC, UL

Materials

• Materials: Rigid and durable thermoplastic‑like, rubber‑like, castable, heat‑resistant, and biocompatible options
• Material System: Closed material system

Build Volume (XYZ)

• Metric: 124.8 × 70.2 × 346 mm
• Imperial: 4.9 × 2.8 × 13.6 inches

Key Properties

• Resolution: 1920 × 1080 pixels
• Build Rate: Up to 100 mm/hr
• Connectivity: Cloud‑enabled for predictive and responsive service via 3D Connect

Requirements

• Operating System: Windows 7 or newer (64‑bit)
• Software: 3D Sprint
• Power: 100‑240 VAC, 50/60 Hz, single phase, 15 A/7.5 A

Dimensions and Weight

• Base Unit (controller + printer): 1226 × 729 × 2091 mm (48.2 × 28.7 × 82.3 inches)
• Weight: 289 kg (637.2 lb)
