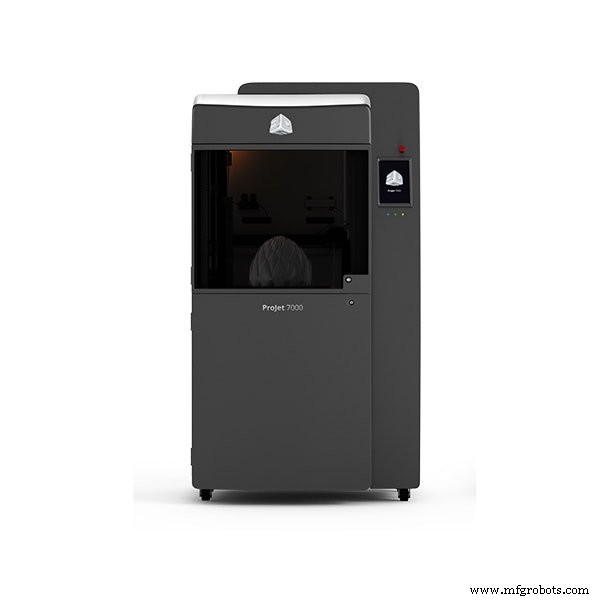

ProJet 7000 HD – High‑Definition SLA Printer for Precise Prototyping and Production

• Exchangeable Material Delivery Modules for rapid material swaps
• Dual laser spot sizes per layer to balance speed and detail
• Intuitive workflow design that simplifies operation
• Engineered to meet injection‑molding accuracy, rivaling CNC machining
• Low material waste thanks to optimized exposure and build strategy
• Accurate curve definition for complex geometries
• Cloud connectivity via 3D Connect for predictive maintenance and support
• Smooth surface finish out of the box, reducing post‑processing

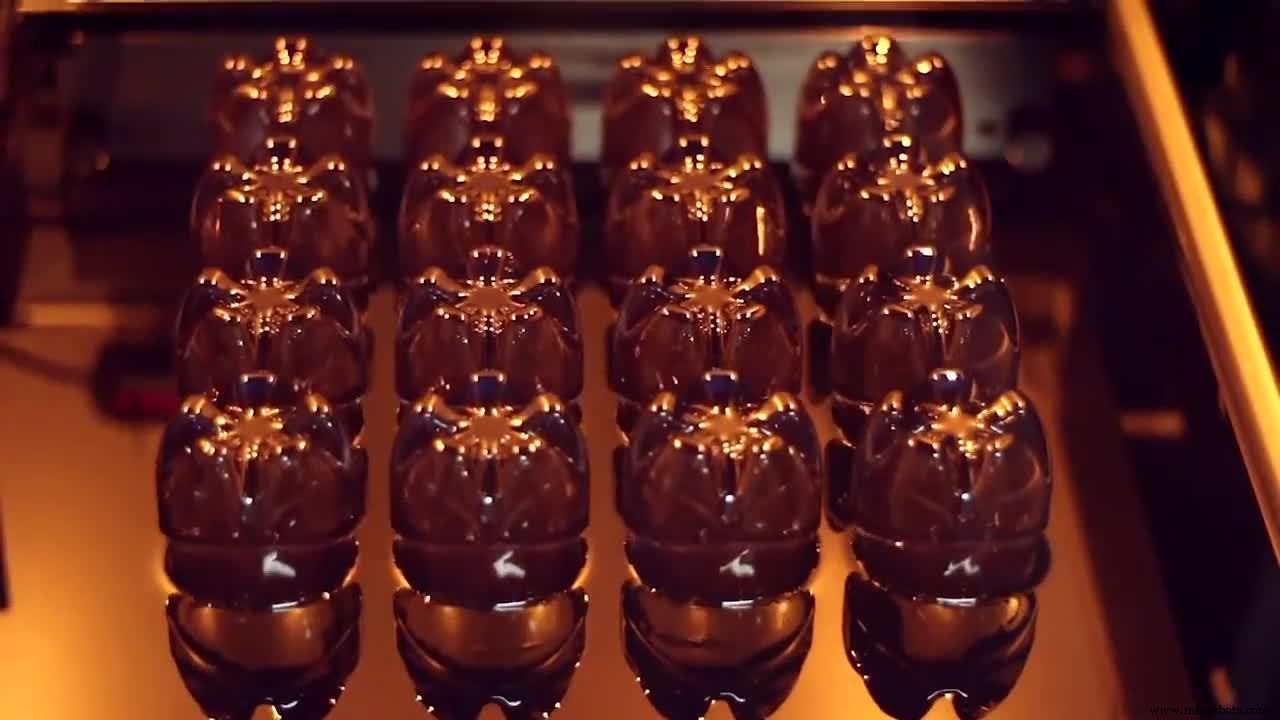

The ProJet 7000 HD leverages the unmatched precision of Stereolithography (SLA) to create single large‑size or multiple small‑size prototypes, patterns, and end‑use parts up to 380 × 380 × 250 mm (15 × 15 × 10 in). Its robust build volume and high‑resolution optics make it ideal for industries that demand both speed and quality.

Accura® materials are engineered specifically for 3D Systems’ SLA platforms, offering a wide range of properties—including rigidity, toughness, clarity, high temperature tolerance, and composite blends—to meet diverse application needs. Whether you’re rapid‑printing a prototype, creating an investment‑casting pattern, or fabricating a thermoforming mold, the ProJet 7000 HD delivers consistent, repeatable results.

Specifications

• Manufacturer: 3D Systems
• Applications: Mold making, production, prototyping, tooling
• Industries: Advertising, R&D, consumer products, medical
• Technology: Stereolithography (SLA)
• Printer Type: Resin-based
• Launch Year: 2014

Materials

• Closed material system ensuring optimal print quality and consistency

Build Volume (XYZ)

• Metric: 380 × 380 × 250 mm
• Imperial: 15 × 15 × 10 inches

Key Properties

• Resolution: 4000 dpi
• Connectivity: Cloud‑based 3D Connect for real‑time monitoring and service alerts
• Operating Sound Level: < 65 dBa (estimated)

Operating Requirements

• Software: 3D Sprint (latest version recommended)
• Power: 100–240 VAC, 50/60 Hz, single‑phase, 750 W

Physical Dimensions & Weight

• Dimensions (Metric): 984 × 854 × 1829 mm
• Dimensions (Imperial): 39.0 × 34.0 × 72 inches
• Weight (Metric): 272 kg
• Weight (Imperial): 600 lb
