3D Systems ProJet MJP 2500W – High‑Performance Wax Printer for Direct Metal Casting

• Wax 3D printer engineered for direct metal casting

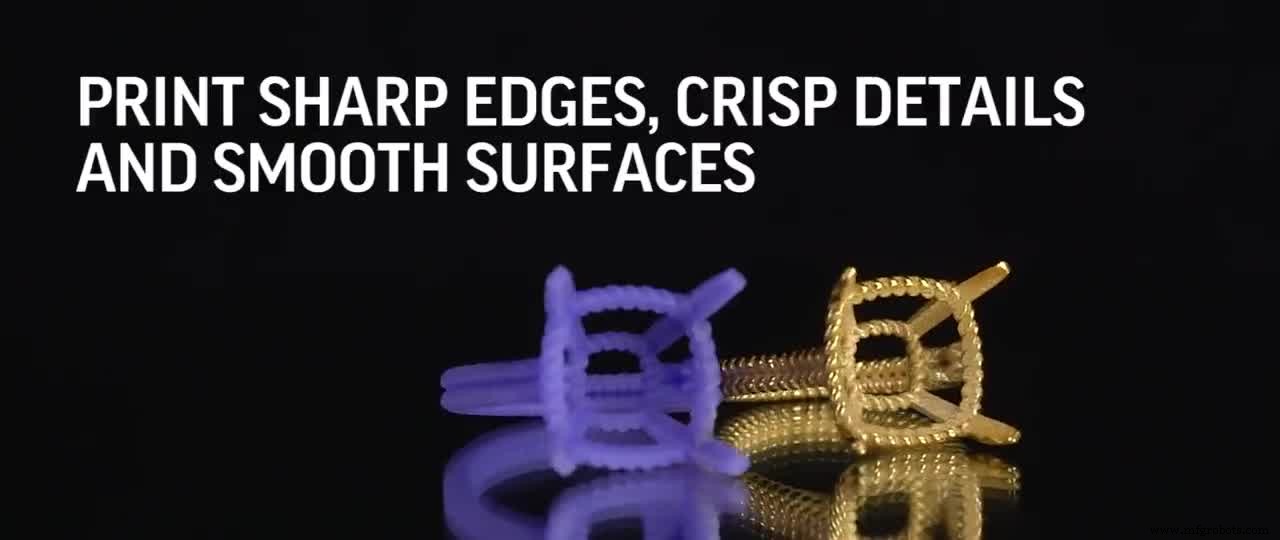

• Prints high‑fidelity patterns with exceptional edge definition
• Delivers sharp edges and fine feature detail
• Offers greater geometric freedom for complex designs
• Uses high‑performance, durable casting wax
• Provides a low total cost of ownership (TCO)

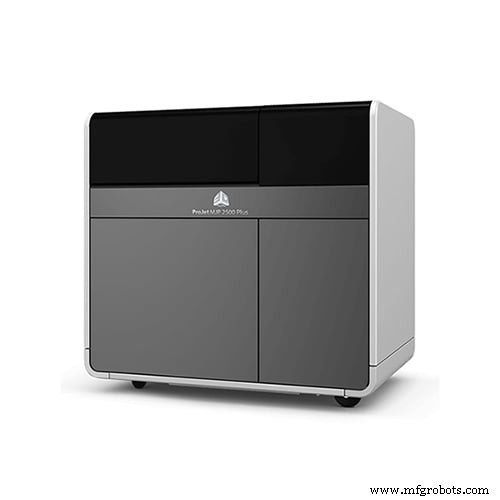

The ProJet MJP 2500W is a 100% wax 3D printer that produces fine wax patterns for direct metal casting. Designed to fit seamlessly into your workflow, it can deliver several short‑run batches in a day or scale to larger builds with high productivity and consistent quality.

Experience up to 10× faster print speeds and a 3.7× larger build volume compared to similar class printers, delivering precision, fine jewelry casting patterns at an affordable price point.

3D Systems ProJet MJP 2500W Specifications

• Company: 3D Systems
• Application: Investment Casting, Production, Prototyping
• Industry: Aerospace, Automotive, Aviation, Consumer Products, Dental
• Technology: Material Jetting
• Printer Type: Wax
• Launch Year: 2017
• Certifications: CE

Materials

• Materials: VisiJet M2 CAST (wax), VisiJet M2 SUW
• Material System: Closed material system

Build Size (XYZ)

• Print Size (Metric): 295 x 211 x 142 mm
• Print Size (Imperial): 11.6 x 8.3 x 5.6 inches

Properties

• Layer Thickness: 16 Microns
• Resolution: 1200 x 1200 x 1600 DPI
• Accuracy: 101.6 Microns per 25.4 mm
• Connectivity: USB, Ethernet
• Operating Sound: < 65 dBa (medium fan setting)

Requirements

• Operating System: Windows 7, 8, or 8.1 (Service Pack)
• Software: 3D Sprint
• Power: 100-127 VAC, 50/60 Hz, single‑phase, 15A; 200-240 VAC, 50 Hz, single‑phase, 10A; Single C14 receptacle

Dimensions (XYZ) & Weight

• Dimensions (Metric): 1120 x 740 x 1070 mm
• Dimensions (Imperial): 44.1 x 29.1 x 42.1 inches
• Weight (Metric): 211 kg
• Weight (Imperial): 465 pounds
