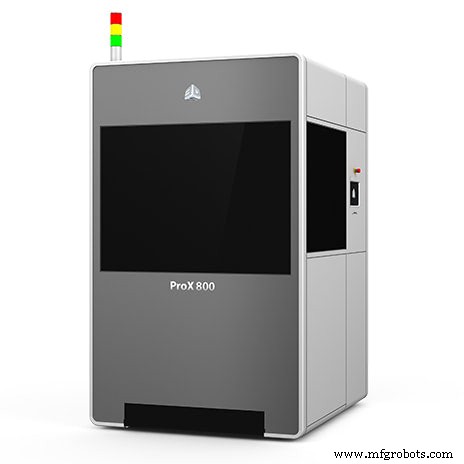

ProX 800 SLA 3D Printer – Precision, Efficiency, and Material Flexibility

• Fast, seamless material changeovers
• All‑in‑one solution with dedicated support
• User‑friendly workflow from design to final part
• Injection‑molding‑grade accuracy, rivaling CNC
• Minimal material waste for sustainable production
• Versatile across a wide range of industries
• Unmatched feature detail on parts of any size
• Consistently smooth surface finish

The ProX 800 SLA 3D printer offers a single, reliable point of contact for expert application support and daily use of our gold‑standard stereolithography technology.

3D Systems’ curated range of Accura® additive‑manufacturing materials is engineered specifically for the ProX 800, delivering rigid, tough, durable, clear, casting, high‑temperature, composite, and specialty options to meet every application and product need. Rapidly prototype, create investment‑casting patterns, thermoforming molds, and more.

3D Systems ProX 800 Specifications

• Company: 3D Systems
• Application: Production & Prototyping
• Industry: Consumer Products, Dental, Medical
• Technology: SLA (Stereolithography)
• Printer Type: Resin
• Launched: 2014

Materials

• Closed material system for consistent quality

Build Volume (XYZ)

• Metric: 650 × 750 × 550 mm
• Imperial: 25.6 × 29.5 × 21.65 inches

Key Properties

• Resolution: 4000 DPI
• Connectivity: Cloud‑enabled with 3D Connect for predictive, on‑demand service
• Operating Sound: ≤ 70 dBA

System Requirements

• Software: 3D Sprint
• Power: 200–240 VAC, 50/60 Hz, single‑phase, 30 amps

Dimensions & Weight

• Size (Metric): 1370 × 1600 × 2260 mm
• Size (Imperial): 50 × 63 × 89 inches
• Weight: 907 kg (2000 lb)
