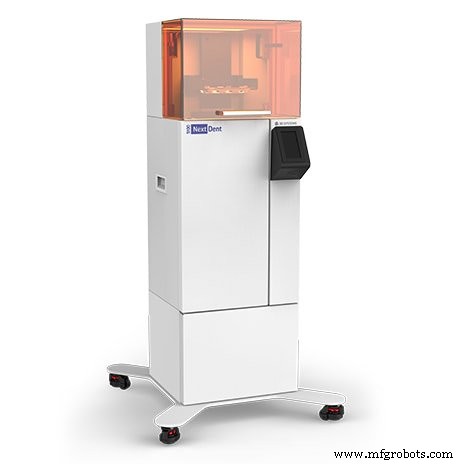

3D Systems NextDent 5100: High‑Speed, Accurate Dental 3D Printing Solution

• High‑speed, production‑grade 3D printer for dental applications
• Exceptional accuracy and reliability
• Cost‑effective solution for labs and clinics
• Built on Figure 4 technology for non‑contact printing

Powered by 3D Systems’ Figure 4 technology, the NextDent 5100 delivers rapid, high‑quality prints for dental appliances and sacrificial castings. Its blend of speed, precision and affordability sets a new standard for dental labs worldwide.

With a versatile material library and seamless integration with leading dental CAD/CAM software, the printer enables clinicians and technicians to produce a wide array of products—including trays, orthodontic and prosthodontic models, surgical guides, dentures, splints, crowns, and bridges—more efficiently and at a lower cost.

Specifications

• Manufacturer: 3D Systems
• Applications: Dental models, dentures, impression trays, surgical guides, production, prototyping
• Industry: Dental
• Technology: Non‑contact membrane Figure 4
• Printer type: Dental resin
• Release year: 2018
• Certifications: FCC, CE, EMC

Materials

• Resin options: NextDent Denture 3D+, NextDent SG (Surgical Guide), NextDent Try‑In, and additional specialized resins
• System type: Closed material system

Build Volume (XYZ)

• 124 × 70 × 196 mm (4.9 × 2.8 × 7.7 in)

Print Resolution

• 1920 × 1080 pixels

System Requirements

• Software: 3D Sprint
• Electrical: 100‑240 VAC, 50/60 Hz, single‑phase, 4.0 A

Physical Dimensions & Weight

• Dimensions: 426 × 489 × 971 mm (16.7 × 19.25 × 38.22 in)
• Weight: 34.5 kg (76 lb)
