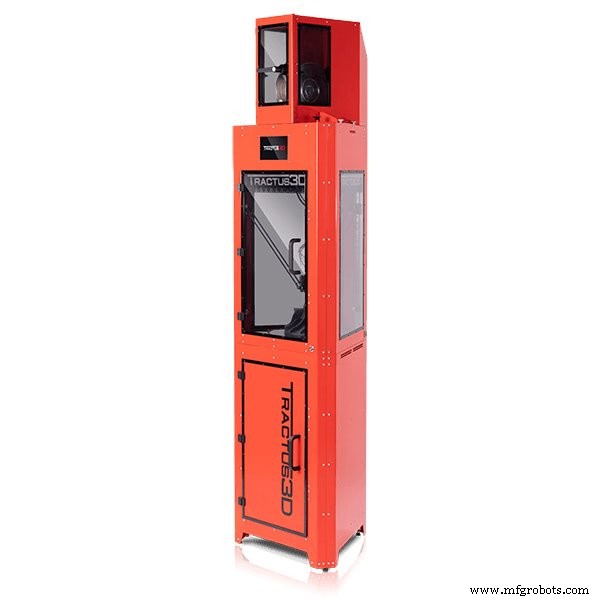

Tractus3D T850P – High‑Temperature FFF Printer for PEEK, Ultem & More

• Prints advanced engineering thermoplastics such as PEEK and Ultem.
• Fast extrusion: up to 40 mm³/s for rapid prototyping and production runs.
• High‑temperature extruder reaching 450 °C (842 °F) for demanding materials.
• Includes a Simplify3D software license for streamlined workflow.
• Optional Service Level Agreement ensures reliable support and uptime.
• Enclosed heated chamber maintains 80 °C (176 °F) for dimensional stability.

The Tractus3D T850P delivers high‑temperature FFF printing with a compact footprint and generous build volume, making it ideal for aerospace, automotive, medical, and R&D applications.

Tractus3D T850P specifications

• Company: Tractus3D
• Applications: Production, Prototyping, Research & Development
• Industries: Aerospace, Automotive, Consumer Products, Medical, Utilities
• Technology: FFF/FDM
• Printer type: Filament Deposition
• Launch year: 2019
• Assembly: Fully‑assembled out of the box

Materials

• Supported filaments: PEEK, Ultem, ABS, Nylon, PETG, and more via an open material system.

Build size (XYZ)

• Metric: 280 mm (D) × 400 mm (H)
• Imperial: 11.0 in (D) × 15.7 in (H)

Key properties

• Filament diameter: 1.75 mm
• Layer thickness: 10 – 1000 µm
• XYZ accuracy: 10 × 10 × 50 µm
• Fully enclosed heated chamber
• Feeder: Flying
• Extruder: Single
• Bed: Heated glass surface with automatic leveling
• Display: Touchscreen
• Connectivity: LAN
• Camera: None

System requirements

• Operating systems: Windows, macOS, Linux
• Slicing software: Simplify3D

Dimensions & weight

• Size: 550 × 476 × 1140 mm (21.6 × 18.7 × 44.8 in)
• Weight: 30 kg (66.1 lb)
