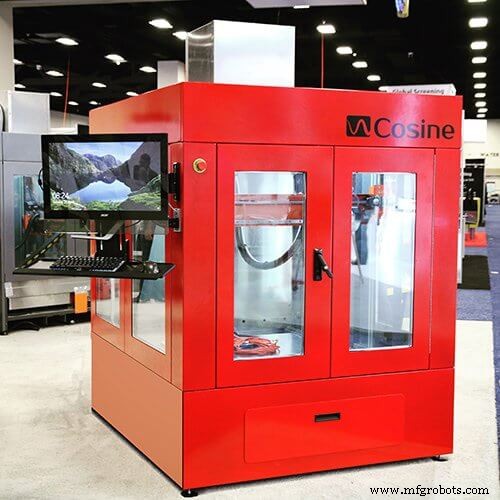

Cosine Additive AM1 – High‑Performance Large‑Scale 3‑D Printer

• Large‑scale material extrusion 3‑D printer
• Build volume: 1100 × 850 × 850 mm (43.3 × 33.4 × 33.4 in)
• Printing speed: up to 1000 mm/s
• Humidity‑controlled filament spool chamber
• Fully enclosed, temperature‑controlled print chamber
• ACS high‑performance multi‑axis EtherCAT motion control system

The Cosine Additive AM1 is a versatile, large‑scale extrusion printer that empowers users to choose from a broad range of extrusion methods. With its pellet extrusion capability, users are no longer confined to the limited selection of 10–20 filaments, powders or resins. Instead, they can tap into the full spectrum of industrial plastics—tens of thousands of variants from injection molding and extrusion—allowing for unparalleled material flexibility and cost savings.

Specifications

• Manufacturer: Cosine Additive
• Applications: Mold making, production, prototyping, R&D, tooling
• Industries served: Aerospace, automotive, boating, construction, defense, signage & graphics
• Technology: FFF/FDM
• Printer type: Large‑scale, pellet‑based, filament deposition
• Launch year: 2019

Materials

• Material library: ABS, PLA, PETG, TPU, PC‑PBT, carbon‑fiber & glass composites, plus 800+ other industrial plastics
• System: Open material system enabling rapid material swaps

Build Size (XYZ)

• Metric: 1100 × 850 × 850 mm
• Imperial: 43.3 × 33.4 × 33.4 inches

Key Properties

• Extruder diameter: 3.00 mm
• Layer thickness: 50–1500 µm
• Build rate: 1 lb/hr (single‑filament) / 20 lb/hr (pellet)
• Volume rate: 300 cm³/hr (single‑filament) / 6000 cm³/hr (pellet)
• Closed print chamber: Fully enclosed and sealed
• Extruder options: Single, dual, tandem, pellet
• Build plate: Heated aluminum or vacuum bed with reusable ABS, PC, PEI, borosilicate glass, or ceramic substrates
• Bed leveling: Manual or semi‑automatic
• Connectivity: Wired WAN, Wi‑Fi, 4G
• Camera: Integrated camera for monitoring

Power Requirements

• 100 V–250 V, 50 Hz/60 Hz, 3 kVA

Dimensions & Weight

• Metric dimensions: 1753 × 1474 × 1855 mm (69.0 × 58.0 × 73.0 in)
• Weight: 1195 kg (2635 lb)
